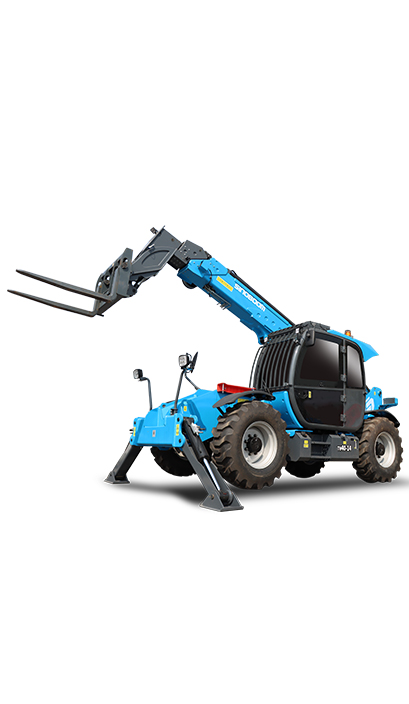

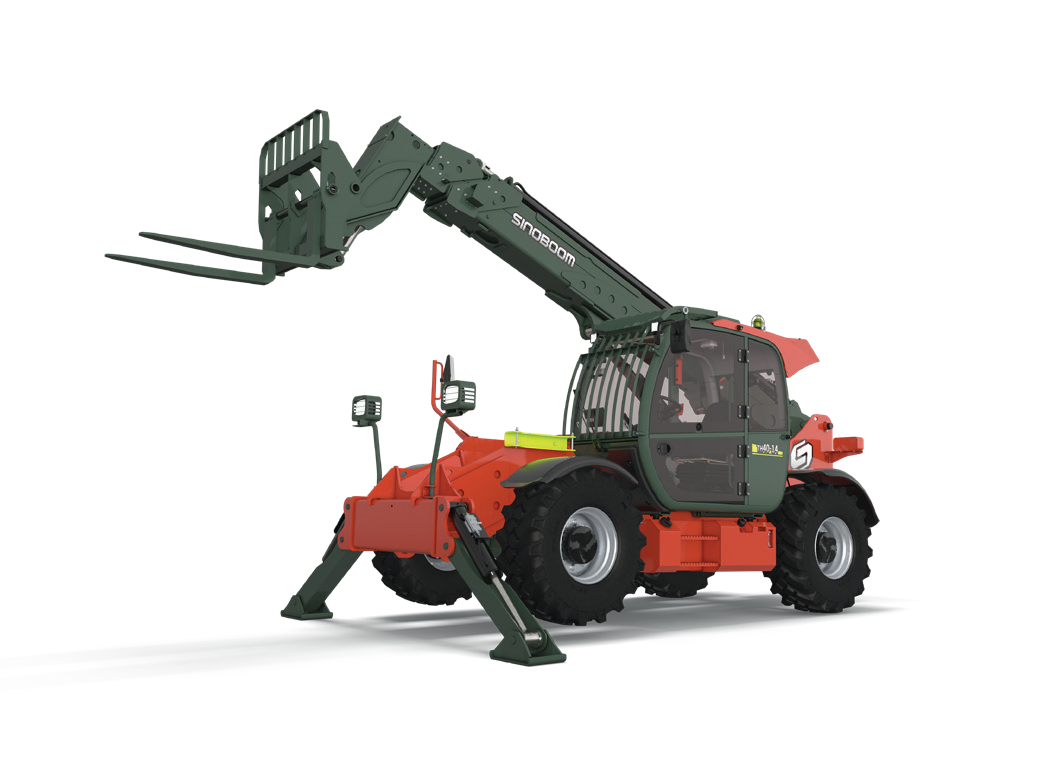

TH40-14
Stationary Multi-functional Telehandler
-
Lifting Heightm
-
Lifting Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS

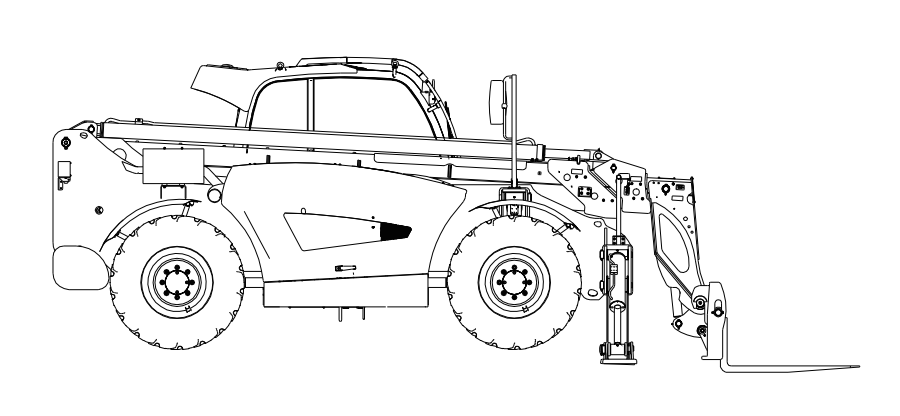

Dimensions
-
Length
7.45 m (24'5.3") -
Length(to face of fork)
6.23 m (20'5.3") -
Width-Stowed
2.34 m (7'8.2") -
Height
2.6 m (8'6.4") -
Cab Width
0.95 m (3'1.4") -
Ground Clearance
0.37 m (1'2.6") -
Wheel Base
3.1 m (10'2") -
Length/Width/Height of fork arm carrier
1.22 m×0.1m×0.06 m (4'×3.9"×2.4")
Performance
-
Max. Lifting Capacity
4,000 kg (8,818 lbs) -
Max. Lifting Height
13.6 m (44'7.4") -
Max. Outreach
9.5 m (31'2") -
Tilt-up Angle of Fork
14° -
Tilt-down Angle of Fork
- 112° -
Turntable Rotation
-
Max. Speed(Boom Retracted)
28 km/h (17.4 mph) -
Gradeability
50% -
Approach/Departure Angle
30°/30° -
Attachment Recognition System
Power
-
Rated Power/Rotate Speed
74 kW/2200 rpm (99.2 hp/2200 rpm) -
Control Voltage
12V DC -
Hydraulic Tank Capacity
222 L (48.83 gal (UK)/58.65 gal (US)) -
Diesel Fuel Tank Capacity
142 L (31.24 gal (UK)/37.51 gal (US))
-
Weight
12,100 kg (26,676 lbs) -
Standards Compliance
GB/EAC
Standard features
- Wet brake axle
- Two-speed transmission
- Four Wheel Drive
- Three steering modes, 4WD, 2WD and Crab
- Tip-over protection system
- Fault diagnosis system
- Bus control walve
- Four-wheel brake
- 7-inch smart screen
- Automatic engine speed-up function
- Attachment 126" rotation and levelling
- Electronically controlled proportional joystick
Optional features
- Reverse Radar
- 360"panoramic camera system
- Optional attachments: fork, work platform, bucket, clamp, vacuum suction device, grapple bucket (in development)
