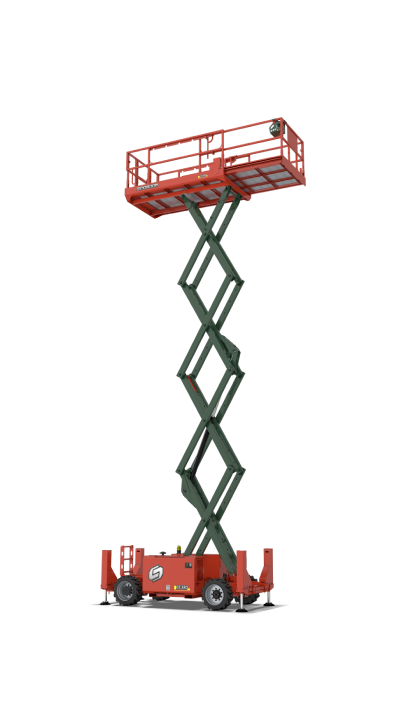

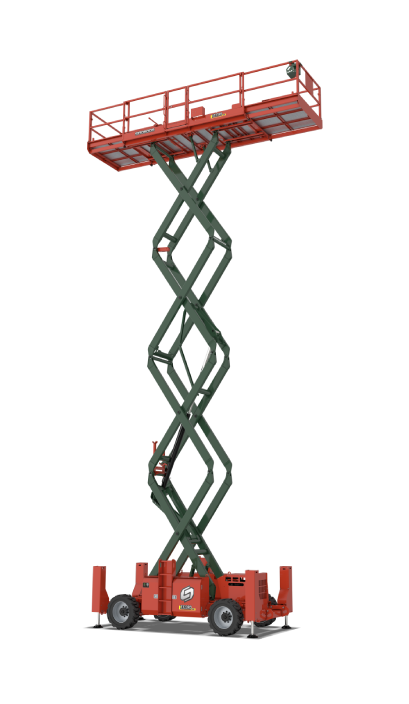

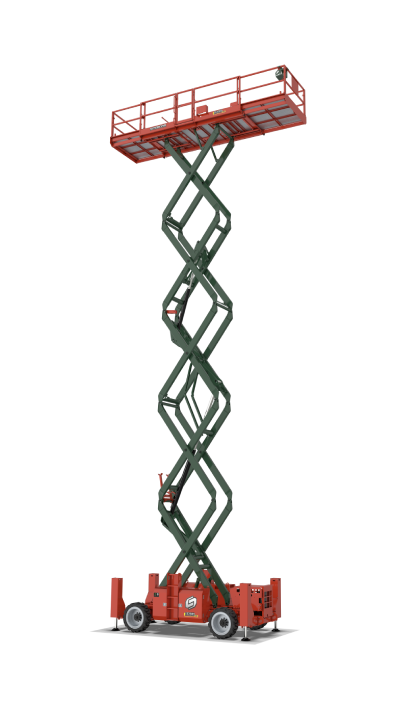

1623RD (5389RD)

Rough Terrain Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Easy maintenance

    ■ Integrated pipeline assembly, convenient for troubleshooting
    ■ Double-door design for easy maintenance, spacious area for maintenance
    ■ Drawer-type engine compartment, easy maintenance

  • Strong off-road performance

    ■ Up to 40% gradeability, easily handling outdoor needs
    ■ Stable movement, copes well with potholed ground

  • Excellent performance

    ■ Powerful platform capacity for unprecedented efficiency
    ■ Two-way extendable platform, spacious working platform
    ■ Wide-angle tilt, one-click outrigger leveling
Dimensions

  • Max Working Height

    18.2m (59'8.5")

  • [A] Max Platform Height

    16.2m (53'1.8")

  • [B] Max Horizontal Extension

    1.5m/1.2m (4'11.1"/3'11.2")

  • [C] Length-Stowed
    (Outriggers/Without Outriggers)

    4.88m (16')

  • [D] Width-Stowed

    2.31 m (7'7")

  • Height - stowed (Rail Folded)

    2.42 m (7'11.3")

  • [E] Height - stowed
    (Rail Unfolded)

    3.18 m (10'5.2")

  • [F] Wheelbase

    2.85 m (9'4")

  • Ground Clearance

    0.36m (1'2.2'')

  • Platform Dimensions(L×W×H)

    6.5m platform: 3.98m×1.83m×1.1m (13'×6'×3'7")
    7.4m platform: 4.84 m×1.82 m×1.1 m (15'10.6"×6'×3'7")
Performance

  • Platform Allowable Occupants
    (Indoor)

    4 Persons

  • Platform Allowable Occupants
    (Outdoor)

    4 Persons

  • Platform Capacity

    680kg (1,499lbs)

  • Drive Speed-Stowed

    6.1 km/h (3.8 mph) Yanmar engine
    5.0 km/h (3.1 mph) Kubota engine

  • Drive Speed-Raised

    1.1 km/h (0.7 mph)

  • Elevation Time
    (Unloaded)

    70s~90s

  • Descent Time
    (Unloaded)

    45s～55s

  • Gradeability

    40%

  • Turning Radius
    (Inside/Outside)

    2.2m/5.3m (7'2.6"/17'4.7")

  • Tilt Rating
    (Front to Back)

    3°

  • Tilt Rating
    (Side to Side, Outrigger Tele-In/Tele-Out)

    2°

  • Max Outrigger Leveling
    (Front to Back)

    7°

  • Max Outrigger Leveling
    (Side to Side)

    12°

  • Tyres-solid

    315/55D20/Foam-Filled
Power

  • Power Source

    Yanmar / 4TNV88C / 35.5 kW(48.3 hp) / EU Stage 5 / EPA Tier 4
    Yanmar / 4TNV88 / 35.3 kW(48 hp) / China Stage 4
    Kubota / D1105 / 18.2 kW(24.7 hp)

  • Drive Mode

    4WD×2WS

  • Fuel Tank Capacity - Diesel

    110L (24 gal (UK) / 29 gal (US))

  • Hydraulic System Capacity

    107L/23.5 gal(UK)/28 gal(US)


  • Weight
    (Outriggers/Without Outriggers)

    Yanmar engine: 8,210 kg (18,100 lbs)
    Kubota engine: 8,000 kg (17,637 lbs)

  • Standards Compliance

    CE/ANSI/CSA/AS/EAC
Download Brochures
Standard features
  • 4 WD × 2 WS
  • Forklift pockets
  • Lifting and tie-down points
  • Document box
  • Electrophoretic painting
  • Proportional controls
  • Emergency stop
  • Dual slide-out extension platform
  • Emergency lowering system
  • Foldable guardrail
  • Horn & buzzer
  • Auto braking system
  • Tilt alarm
  • Motion alarm
  • Load sensing system
  • Flashing beacon
  • Fault diagnosis system
  • Active oscillating function
  • Auto-leveling hydraulic outriggers
  • Foam-filled tires
  • Telematics-ready connector
Optional features
  • AC power to platform
  • Foam-filled non-marking tires
  • Solid tires
  • Solid non-marking tires
  • 7.4m platform
  • Pipe cradle
  • Generator
  • Cold weather package
