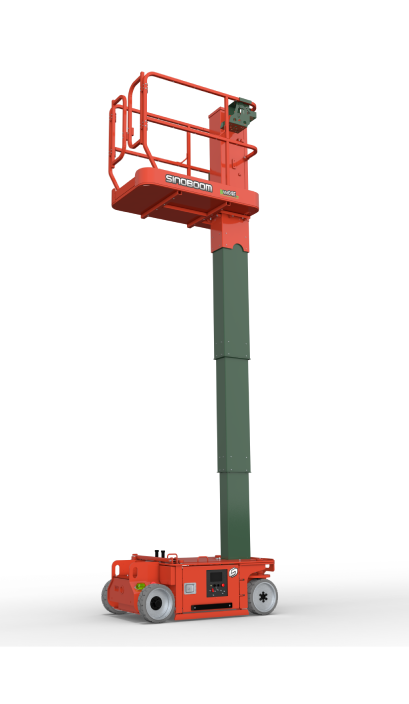

VM06E AL (VM200E AL)
VERTICAL MAST LIFTS
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS

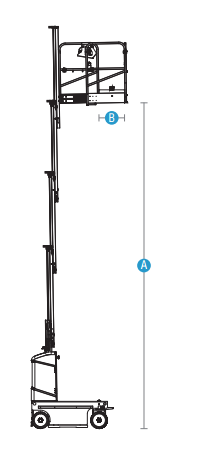

Dimensions
-
Max Working Height
8 m (26'3") / 6.8 m (22'3.7") (Indoor/Outdoor) -
A Max Platform Height
6 m (19'8.2") / 4.8 m (15'9") (Indoor/Outdoor) -
B Max Horizontal Extension
0.5m (1'7.7") -
C Length-Stowed
1.4m (4'7.1") -
D Height-Stowed
1.99 m (6'6.3") -
E Width-Stowed
0.78 m (2'6.7") -
F Wheelbase
1.075 m (3'6.3") -
Ground Clearance
(Pothole Guard Stowed)0.054 m (2.1") -
Ground Clearance
(Pothole Guard Deployed)0.02 m (0.79") -
Platform Dimensions(L×W×H)
0.77 m×0.74 m×1.1 m (2'6.3"× 2'5.1"× 3'7.3")
Performance
-
Platform Allowable Occupants
(Indoor/Outdoor)1 Person -
Platform Capacity
160 kg (353 lbs) -
Drive Speed-Stowed
0～3 km/h (0～1.9 mph) -
Drive Speed-Raised
0～0.8 km/h (0～0.5 mph) -
Elevation Time
(Unloaded)21s -
Descent Time
(Unloaded)30s -
Gradeability
25% (2WD) -
Turning Radius
(Inside/Outside)0 m/1.55 m (0"/5'1") -
Tilt Rating
(Front to Back/ Side to Side)3°/1.5° -
Tyre Spec/Type
305×100 mm (12×4") / solid, non-marking
Power
-
Batteries
24 V, 120 Ah, 20 hr (Lead-acid battery) -
Power Source
24 V DC, 2.2 kW -
Drive Mode
2 WD×2 WS -
Charger Input
100～240 V AC -
Charger Output
15 A -
Brake
- -
Hydraulic System Capacity
6 L (1.3 gal (UK)/1.6 gal (US))
-
Weight
1,180 kg (2,601 lbs) -
Standards Compliance
CE/ANSI/CSA
Standard features
- 2 WD×2 WS
- Maintenance-free battery
- Anti-collision strip (PA6)
- Non-marking tire
- Auto braking system
- Emergency lowering system
- Emergency stop
- Fault diagnosis system
- Tilt protection system
- Telematic-ready connector
- Forklift pockets and lifting points
- Electrophoretic coating process
- Retracting wire rope
- Pothole protection
- Drivable at full height
- AC power to platform
- Overload sensing system
- Extendable platform
Optional features
