HOME>PRODUCTS>Telescopic Boom Lift>TB42RJ PLUS (TB1370RJ PLUS)

TB42RJ PLUS (TB1370RJ PLUS)

ENGINE POWERED TELESCOPIC BOOM LIFTS
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Platform Height

    41.6 m (136'6")

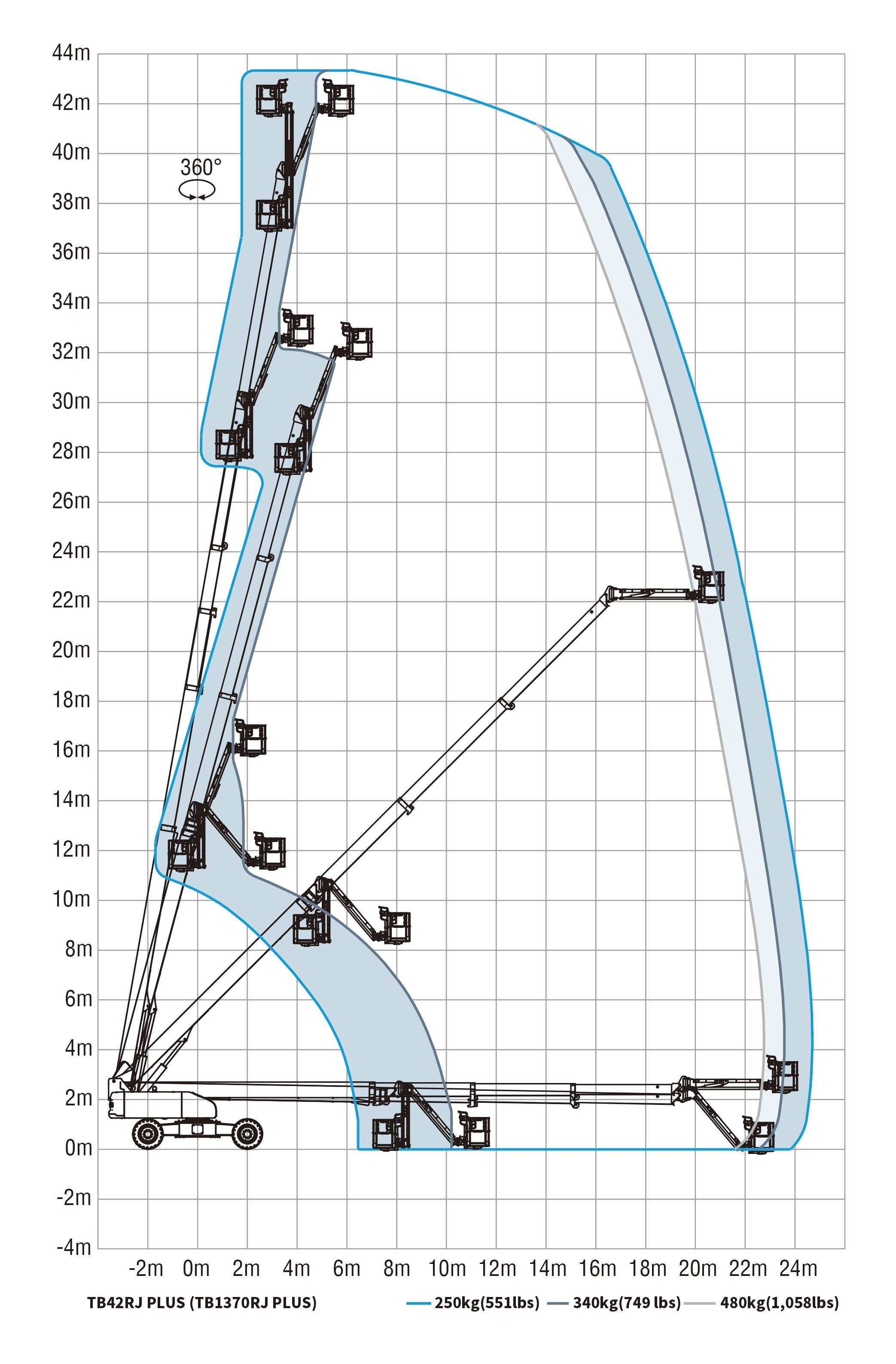

  • Max Working Height

    43.6 m (143'0.5")

  • Max Horizontal Extension

    22.1 m / 23 m / 24.1 m (72'6"/75'6"/79'1") (Restricted/ Restricted /Unrestricted)

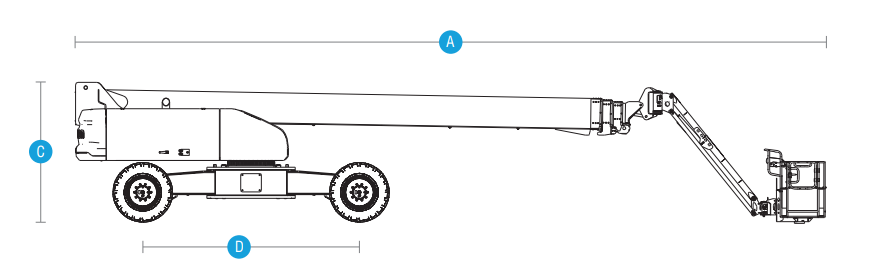

  • [A] Length-Stowed

    15.24 m (50')

  • [B] Width

    2.49 m (8'2")

  • [C] Height-Stowed

    2.84 m (9'4")

  • [D] Wheelbase

    4.4 m / 3.99 m (14'5"/13'1") (Outrigger Retracted/Extended)

  • Ground Clearance

    0.48 m (1'7")

  • Platform Dimensions(L×W×H)

    2.44 m×0.91 m×1.1 m (8'×3'×3'7")
Performance

  • Platform Capacity
    (Unrestricted)

    250 kg (551 lbs)

  • Platform Capacity
    (restricted)

    480 kg / 340 kg (1,058 lbs/749 lbs)

  • Turntable Rotation

    360°/Continuous

  • Platform Rotation

    180°

  • Drive Speed-Stowed

    0～4.4 km/h (0～2.7 mph)

  • Drive Speed-Raised

    0～0.7 km/h (0～0.43 mph)

  • Gradeability

    40%

  • Turning Radius-Inside

    3.98 m / 1.89 m (13' / 6'2") (Outrigger retracted / extended)

  • Turning Radius-Outside

    6.37 m / 5.22 m (20'11" / 17'2") (Outrigger retracted / extended)

  • Turntable Tailswing

    1.64 m(7'7")

  • Tilt Rating

    5°

  • Max Operating Noise Level

    -

  • Drive×Steer

    4WD × 4WS

  • Tyres-solid

    445 / 50D710 18PR (foam-filled)
Power

  • Power Source (Optional)

    54 kW /2400 rpm/ QSF2.8t3TC72/Cummins/China T3
    55.8 kW / 2200 rpm/YCF3075-T480/Yuchai/China T4

  • Auxiliary Power Unit

    12 V DC

  • Fuel Tank Capacity-Diesel

    200 L (44.0 gal (UK)/52.8 gal (US))

  • Hydraulic Tank Capacity

    280 L (61.6 gal (UK)/74 gal (US))


  • Weight

    22,400 kg (49,383 lbs)

  • Standards Compliance

    CE
Download Brochures
Standard features
  • Jib rotation
  • Four-wheel brake
  • 4WD × 4WS
  • Continuous turntable rotation in 360°
  • 7-in smart screen
  • Fault diagnosis system
  • Anti-pinch device
  • Platform rotation function
  • Weighing system
  • Tilt protection system
  • Max allowable tilt angle at 5°
  • Rear position and travel confirmation
  • Rotating warning light for safety warning
  • Horn and buzzer for safety warning
  • Secondary guarding device
  • Emergency stop system
  • Emergency lowering system
  • Mechanical release for travel
  • Proportional control with 3 joysticks
  • Automotive sleeves for all pipes
  • Swing-out engine tray
  • Anti-restart protection for engine
  • Automatic engine shutdown in case of malfunction
  • Engine preheating
  • Two-speed travel motor
  • Divider/combiner anti-slip system
  • Manual storage box
  • Platform with inward swinging gate (2.44×0.91×1.1 m)
  • Oil cooler
Optional features
  • AC power line to the platform
  • Solid tire
  • Non-marking tire
  • Telematics-ready connector
  • Working light on the platform
  • Anti-collision device
  • Hydraulic generator
  • Glass bracket (for platform with inward swinging gate)
  • Tool box (for platform with inward swinging gate)
  • Half-height guardrail (for platform with inward swinging gate)
