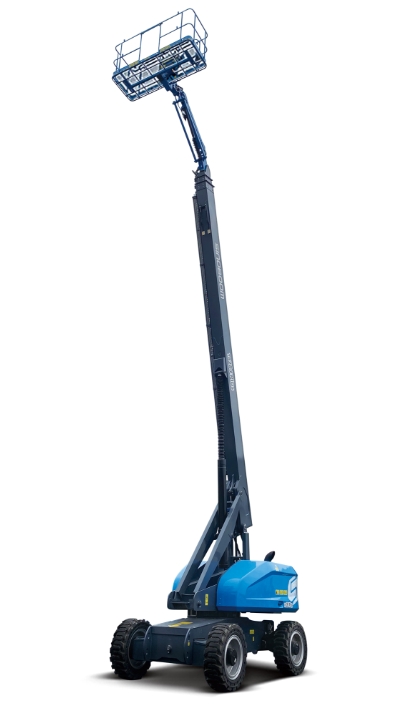

TB28J Plus (TB910J Plus)

Engine Powered Telescopic Boom Lifts
Working height
m
Platform Capacity
kg
Gradeability
%
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights
  • Precision Performance

    The upper control box is equipped with 3 full-proportional handles for gradual control of boom lifting, telescoping, turntable rotation and driving speed. Operate with smooth starting and stopping and precision approach to your worksite target.
  • Intelligent Maintenance

    Industry leading 7" screen displays faults and status information, for easy reference, reducing service technician assistance. Workers can complete tasks under the remote guidance of qualified service technicians. Convenient for fleet managers to quickly access live machine and maintenance information.
  • Oscillating Function

    Both the active and inactive states have an oscillating function, allowing work to
    be performed on inclines and uneven ground.
  • High Capacity

    Plus series boom lifts holds up to 1,000 lb (restricted)/ 661lb (unrestricted), allowing you to carry up to 3 occupants plus material and tools to get your job done easily.
Dimensions
  • Max Platform Height

    27.6m (90'7")

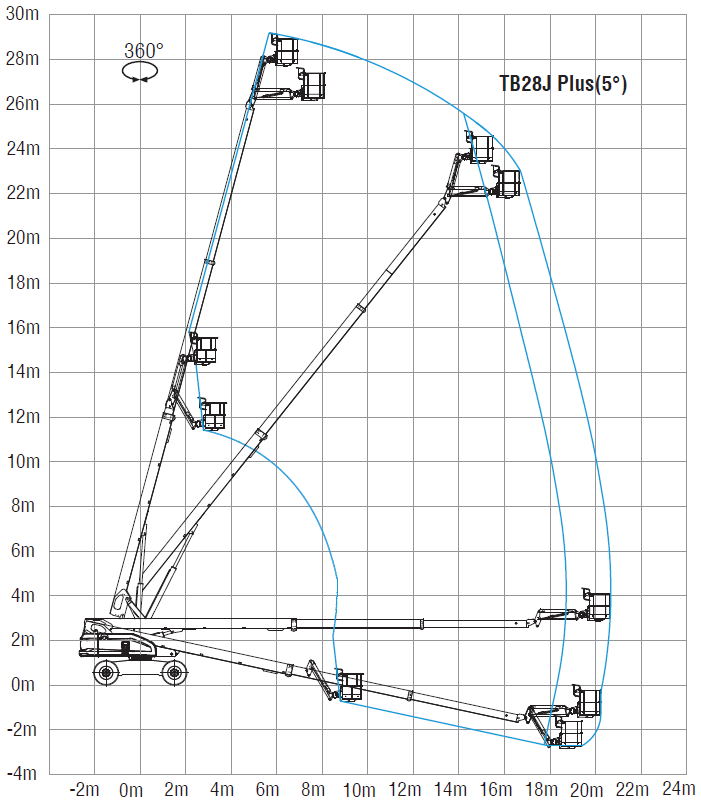

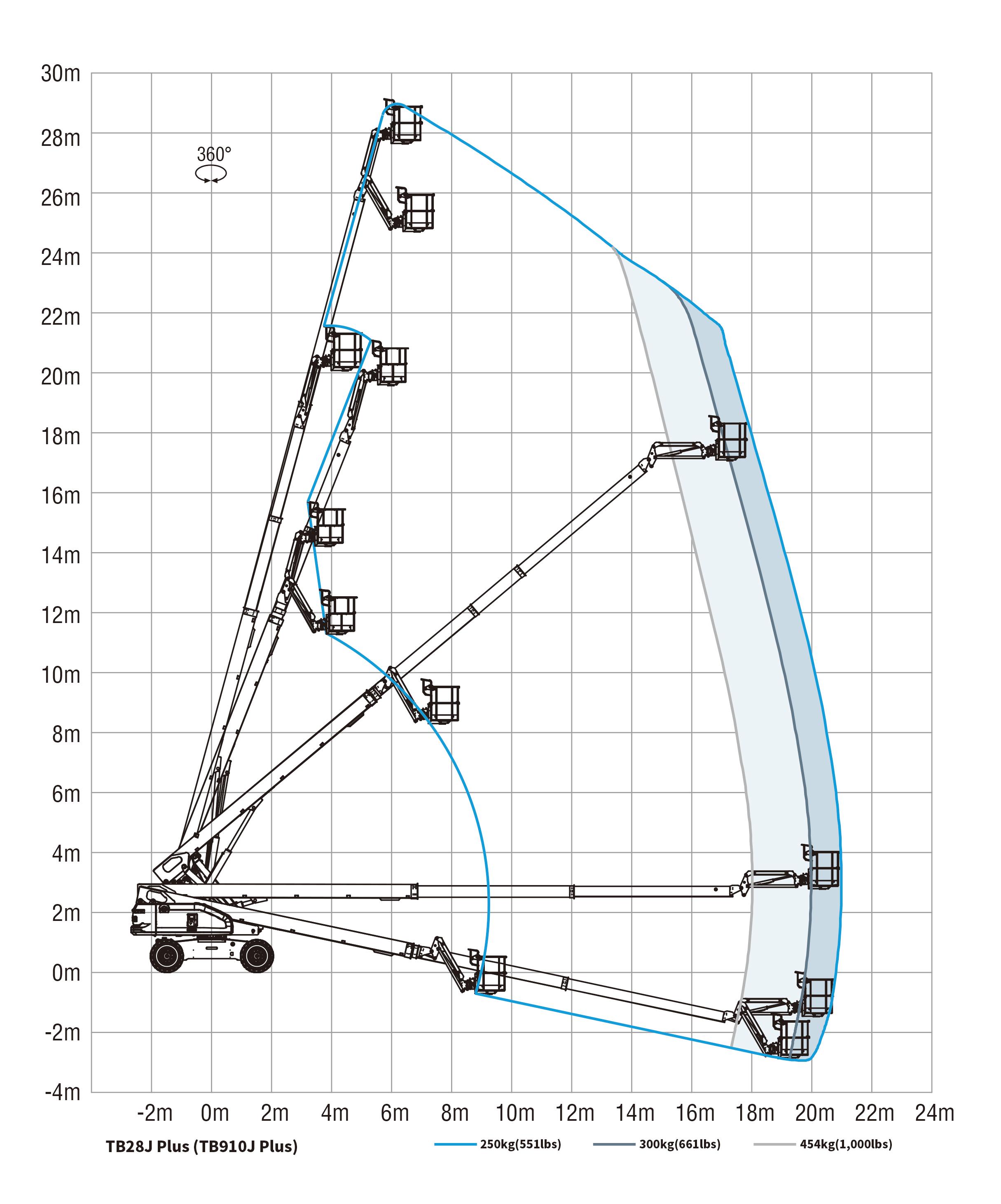

  • Max Working Height

    29.6m (97'1")
  • Max Horizontal Extension

    18m (59') (Restricted) / 20m (65'3") (Unrestricted)

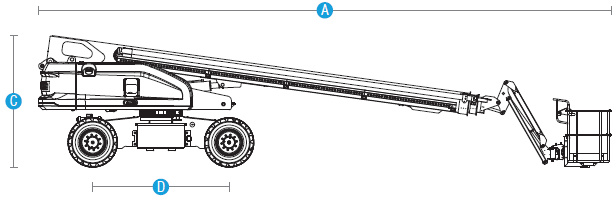

  • [A] Length-Stowed

    12.5m (41')

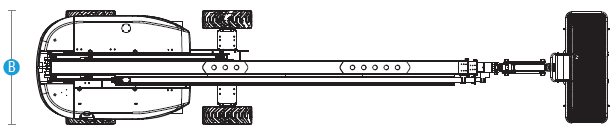

  • [B] Width

    2.49m (8'2")
  • [C] Height-Stowed

    2.88m (9'5")
  • [D] Wheelbase

    3m (9'10")
  • Ground Clearance

    0.46m (1'6")
  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m (8'×3'×3'7")
Performance
  • Platform Capacity
    (Unrestricted)

    300kg (661lbs)
  • Platform Capacity
    (restricted)

    454kg (1,000lbs)
  • Turntable Rotation

    360° continuous
  • Platform Rotation

    160°
  • Drive Speed-Stowed

    4.8km/h (3mph)
  • Drive Speed-Raised

    0.8km/h (0.5mph)
  • Gradeability

    45%
  • Turning Radius-Inside

    2.44m (8')
  • Turning Radius-Outside

    5.84m (19'2")
  • Turntable Tailswing

    1.45m (4'9")
  • Tilt Rating

  • Max Operating Noise Level

  • Drive×Steer

    4WD×2WS
  • Tyres-solid

    385/65-22.5 (Foam filled)
Power
  • Power Source (Optional)

    [Cummins QSF2.8t3TC72, 54kW Tier 3 / EU Stage 3A] or
    [Deutz TD2.9L4, 55.4kW US EPA Tier 4f]
  • Auxiliary Power Unit

    12V DC
  • Fuel Tank Capacity-Diesel

    160L (35.2 UK gal / 42.3US gal)
  • Hydraulic Tank Capacity

    190L (41.8 UK gal / 50.2 US gal)

  • Weight

    17,000kg (37,479lbs)
  • Standards Compliance

    ISO/CE/ANSI/CSA/EAC
Standard features
  • Platform levelling
  • 7" screen
  • Dual-speed drive motor
  • Platform 160° hydraulic rotation
  • Safety controller
  • Patented anti-slip system by flow divider/combiner valve
  • Drive enable system
  • Fault diagnosis system
  • Foam filled tyres
  • 3 joysticks with variable proportional control
  • Swing-out engine
  • 4-wheel brake
  • Horn and buzzer alarms
  • Engine restart protection
  • Emergency brake release
  • Rotating warning lamp
  • Engine malfunction automatic shutdown
  • 4WDx2WS
  • Tilt protection
  • Engine preheating
  • Oscillating system
  • Overload sensing system
  • Emergency stop system
  • 360°continuous turntable rotation
  • Max allowable inclination up to 5°
  • Emergency lowering system
  • 2.44m(8'1") platform
Optional features
  • 1.45m (4'9") work platform
  • AC power to platform
  • Telematics
  • 1.83m (6') work platform
  • Hydraulic generator
  • Platform work light
  • Solid non-marking tyres
  • Overhead anti-collision device
  • 2.44m(8'1") swing type tri-gate platform
  • Foam-filled non-marking tyres
  • Anti-crushing device
