TB38J Plus (TB1260J Plus)
Engine Powered Telescopic Boom Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Platform Height
38.4m (126') -
Max Working Height
40.4m (132'7") -
Max Horizontal Extension
19.5m (63'11") (Restricted) / 21m (68'11") (Unrestricted) -

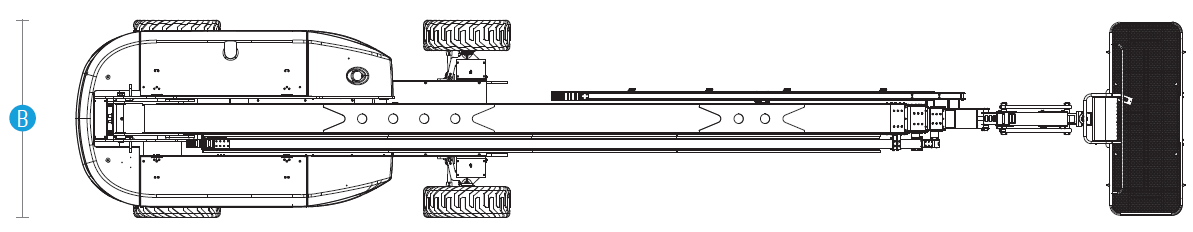

[A] Length-Stowed
13.8m (45'3") -
[B] Width
2.49m (8'2") (Axle retracted) / 3.36m (11') (Axle extended) -
[C] Height-Stowed
3.1m (10'2") -
[D] Wheelbase
3.66m (12') -
Ground Clearance
0.43m (1'5") -
Platform Dimensions(L×W×H)
2.44×0.91×1.1m (8'×3'×3'7")
Performance
-
Platform Capacity
(Unrestricted)300kg (661lbs) -
Platform Capacity
(restricted)454kg (1,000lbs) -
Turntable Rotation
360° continuous -
Platform Rotation
160° -
Drive Speed-Stowed
4.4km/h (2.7mph) -
Drive Speed-Raised
1.1km/h (0.68mph) -
Gradeability
40% -
Turning Radius-Inside
2.56m (8'4") -
Turning Radius-Outside
5.57m (18'3") -
Turntable Tailswing
1.86m (5'11") -
Tilt Rating
5° -
Max Operating Noise Level
-
Drive×Steer
4WD×4WS -
Tyres-solid
385/65D22.5 (Foam-filled)
Power
-
Power Source (Optional)
54 kW/2400 rpm/ QSF2.8t3TC72/Cummins/China T3 -
Auxiliary Power Unit
12V DC -
Fuel Tank Capacity-Diesel
200L (44.0 gal (UK) / 52.8 gal (US)) -
Hydraulic Tank Capacity
260L (57.2 gal (UK) / 68.7 gal (US))
-
Weight
20,700kg (45,635lbs) -
Standards Compliance
CE/ANSI/EAC
Standard features
- 7-in display screen
- 4WD×4WS
- Proportional control with 3 joysticks
- Automotive-grade sleeves for all pipes
- Weighing system
- Hydraulic platform leveling
- 2.44 m(8') platform
- Emergency stop system
- Tilt protection system
- Max tilt rating to 5°
- Emergency lowering system
- Flashing beacon
- Horn & buzzer
- Fault diagnosis system
- Footswitch
- AC power to platform
- Foam-filled tires
- Manual storage box
Optional features
- Foam-filled non-marking tires
- Solid tires/Solid non-marking tires
- 1.45 m (4'9") platform
- 1.83 m(6') work platform
- 1.83 m(6') /2.44m(8') platform with swinging gate
- Platform work light
- Glazier kit (for platform with swinging gate)
- Half mesh (for platform with swinging gate)
- Telematics-ready connector
- Secondary guarding device
- Overhead anti-collision device
