HOME>PRODUCTS>SCISSOR LIFT>0608ME All (1932ME All)

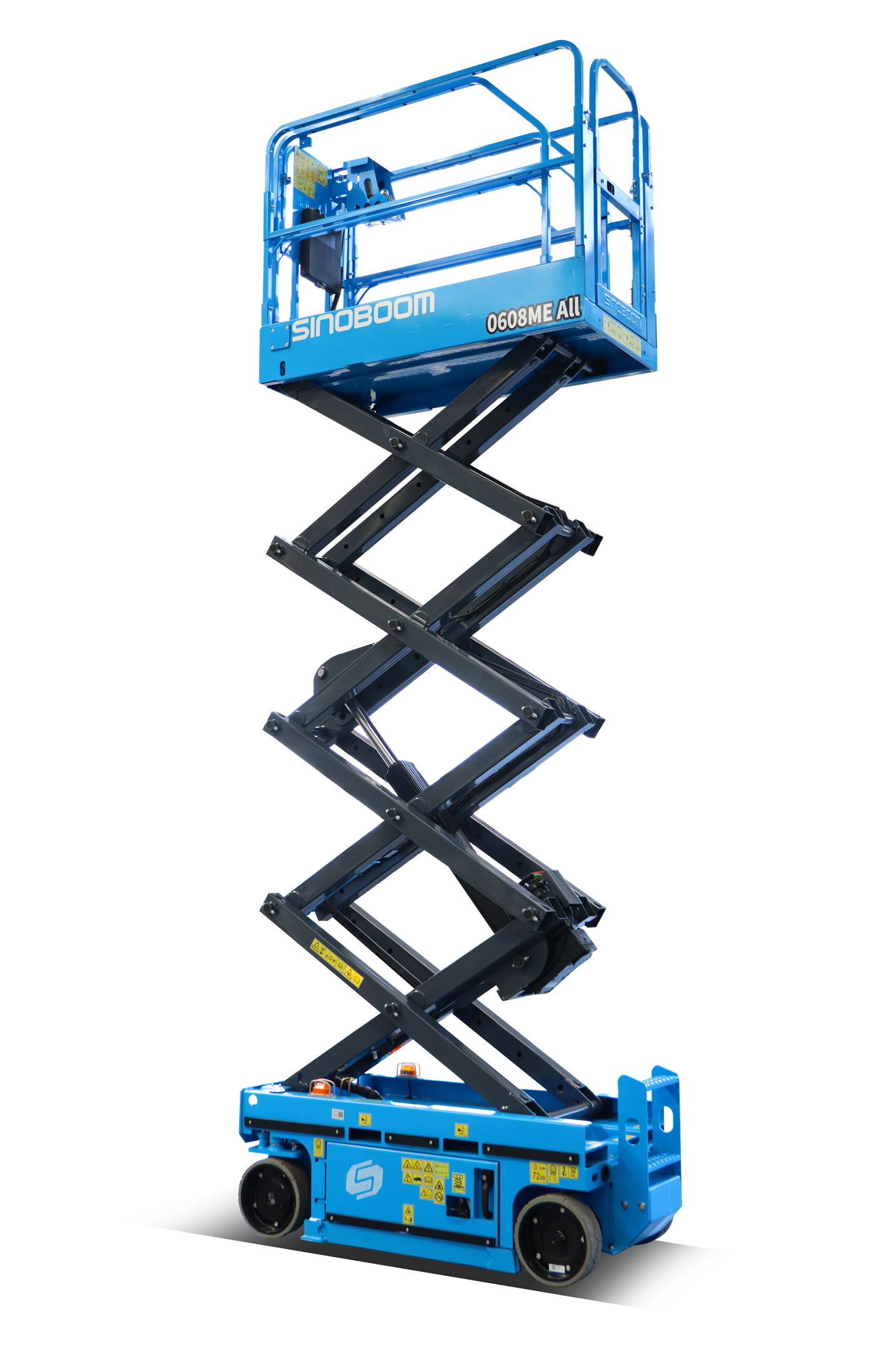

0608ME All (1932ME All)

All Electric Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    7.8 m (25'7")

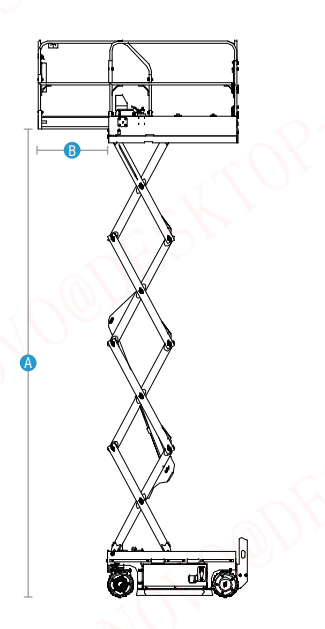

  • [A] Max Platform Height

    5.8 m (19')

  • [B] Max Horizontal Extension

    0.9 m (3')

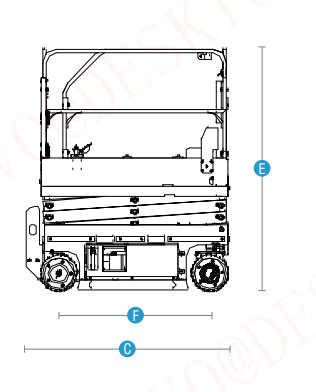

  • [C] Length-Stowed

    1.8 m (5'11")

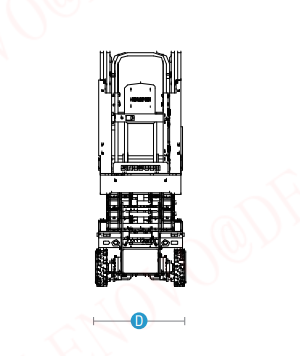

  • [D] Width-Stowed

    0.81 m (2'7.9")

  • Height - stowed Rail Folded

    1.88 m (6'2")

  • [E] Height - stowed Rail Unfolded

    2.14 m (7')

  • Height - stowed Fixed Rail

    -

  • [F] Wheelbase

    1.334 m (4'4")

  • Ground Clearance
    (Pothole Guard Stowed)

    0.061 m (2.4")

  • Ground Clearance
    (Pothole Guard Deployed)

    0.024 m (0.95")

  • Platform Dimensions(L×W×H)

    1.64 m×0.76 m×1.1 m (5'4.6"×2'6"×3'7")
Performance

  • Platform Allowable Occupants
    (Indoor/Outdoor)

    2 Persons/1 Person

  • Platform capacity

    230 kg (507 lbs)

  • Lift Extension Capacity

    120 kg (265 lbs)

  • Drive Speed-Stowed

    0～4 km/h (0～2.5 mph)

  • Drive Speed-Raised

    0～0.5 km/h (0～0.3 mph)

  • Elevation Time(Unloaded)

    25 s~30 s

  • Descent Time(Unloaded)

    25 s~30 s

  • Gradeability

    25%

  • Turning Radius
    (Inside/Outside)

    0 m/1.62 m (0 /5'3.78")

  • Tilt Rating
    (Front to Back/Side to Side)

    3°/1.5°

  • Tyres-solid

    323×100mm (12.7×4")/solid non-marking tires
Power

  • Batteries

    24V, 220 Ah (AGM Batteries)

  • Power Source

    24V AC /0.6 kW

  • Drive Mode

    2 WD×2 WS

  • Charger Input

    100～240V AC

  • Charger Output

    30A

  • Hydraulic System Capacity

    -


  • Weight(Indoor/Outdoor)

    1,600 kg (3,527 lbs)

  • Weight(Indoor Only)

    -

  • Standards Compliance

    CE/ANSI/CSA
Download Brochures
Standard features
  • 2WD×2WS
  • Maintenance-free battery
  • Fault diagnosis system
  • Solid non-marking tires
  • Proportional control
  • Emergency lowering system
  • Emergency stop system
  • Electrophoretic painting
  • Tilt protection system
  • Flashing beacon
  • Side/rear forklift pockets
  • Lifting and tie down points
  • Foldable guardrail
  • Automatic pothole protection
  • Overload sensing system
  • Drivable at full height
  • Bumper rails
  • Manual storage box
  • Horn & buzzer
  • AC power to platform
  • Auto braking system
  • AC drive motor
  • Full size swing gate
  • Telematics-ready connector
  • Weighing System
Optional features
  • RCBO
  • Platform work light
  • Overhead anti-collision device
  • Footswitch
  • Charging transfer wire
