HOME>PRODUCTS>SCISSOR LIFT>0812E(2746E)

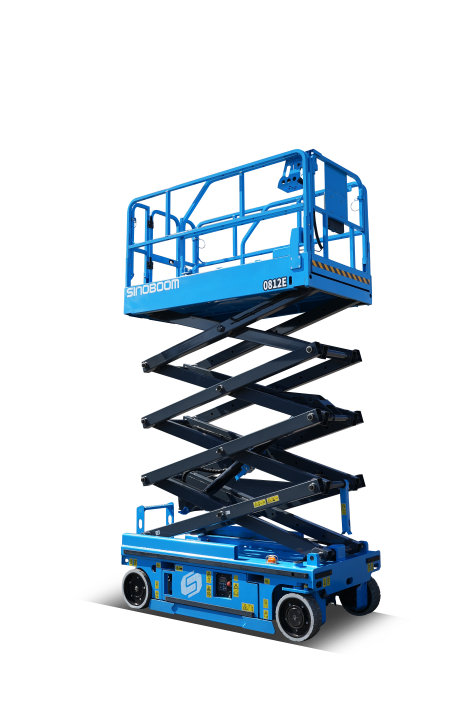

0812E(2746E)

Electric Series Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    10.1m (33'2")

  • [A] Max Platform Height

    8.1m (26'7")

  • [B] Max Horizontal Extension

    0.9m (3')

  • [C] Length-Stowed

    2.45m (8')

  • [D] Width-Stowed

    1.17m (3'10")

  • Height - stowed Rail Folded

    1.73m (5'8")

  • [E] Height - stowed Rail Unfolded

    2.36m (7'9")

  • Height - stowed Fixed Rail

  • [F] Wheelbase

    1.88m (6'2")

  • Ground Clearance
    (Pothole Guard Stowed)

    0.1m (4")

  • Ground Clearance
    (Pothole Guard Deployed)

    25mm (0.98")

  • Platform Dimensions(L×W×H)

    2.30m×1.15m×1.1m (7'6.5"×3'9"×3'7")
Performance

  • Platform Allowable Occupants
    (Indoor/Outdoor)

    2 persons

  • Platform capacity

    450kg (992lbs)

  • Lift Extension Capacity

  • Drive Speed-Stowed

    0～4 km/h (0～2.5 mph)

  • Drive Speed-Raised

    0～0.8 km/h (0～0.5 mph)

  • Elevation Time(Unloaded)

    33s~38s

  • Descent Time(Unloaded)

    35s~40s

  • Gradeability

    25%

  • Turning Radius
    (Inside/Outside)

    0/2.35m (0/7'8.5")

  • Tilt Rating
    (Front to Back/Side to Side)

    3°/1.5°

  • Tyres-solid

    380×125mm (15×5") / solid
Power

  • Batteries

    24V, 220Ah (Lead acid battery)/25.6V, 200Ah (Lithium battery)

  • Power Source

    24V DC, 3.3 kW

  • Drive Mode

    Motor, front-wheel

  • Charger Input

    100~240V AC

  • Charger Output

    30A

  • Hydraulic System Capacity

    15L (3.3 gal(UK)/4.0 gal(US))


  • Weight(Indoor/Outdoor)

    2,715kg (5,986lbs)

  • Weight(Indoor Only)

  • Standards Compliance

    CE/ANSI/CSA/AS/EAC
Download Brochures
Standard features
  • 2WD×2WS
  • Maintenance-free battery
  • Fault diagnosis system
  • Non-marking tires
  • Proportional control
  • Emergency lowering system
  • Emergency stop
  • Electrophoretic painting
  • Tilt protection system
  • Flashing beacon
  • Forklift pockets and lifting points
  • Overload sensing system
  • Foldable guardrail
  • Automatic pothole protection
  • Manual storage box
  • Drivable at full height
  • Bumper rails Auto braking system
  • Horn & buzzer
Optional features
  • RCBO
  • AC power to platform
  • Platform work light
  • Footswitch
  • Overhead anti-collision device
  • Telematics-ready connector
  • Lithium battery
  • AC drive motor
