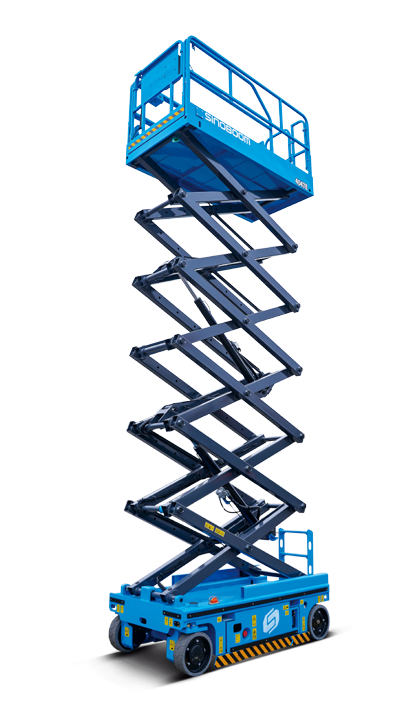

1212E(4046E)

ELECTRIC SCISSOR LIFTS - ELECTRIC DRIVE
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    13.9 m (45'7")/11 m (36')(Indoor/Outdoor)

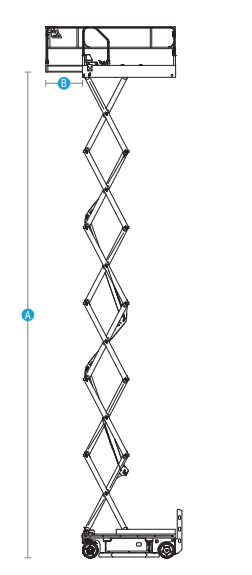

  • [A] Max Platform Height

    11.9 m (39')/9 m (29'6")(Indoor/Outdoor)

  • [B] Max Horizontal Extension

    0.9m (3')

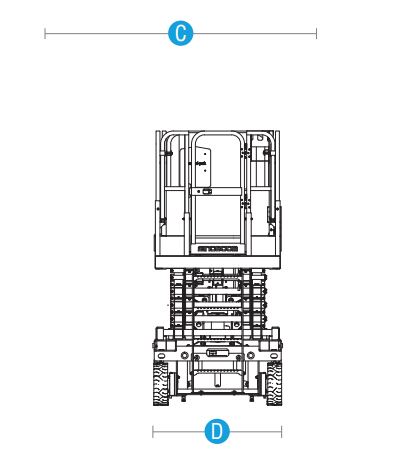

  • [C] Length-Stowed

    2.45m (8')

  • [D] Width-Stowed

    1.17m (3'10")

  • Height - stowed Rail Folded

    1.98m (6'6")

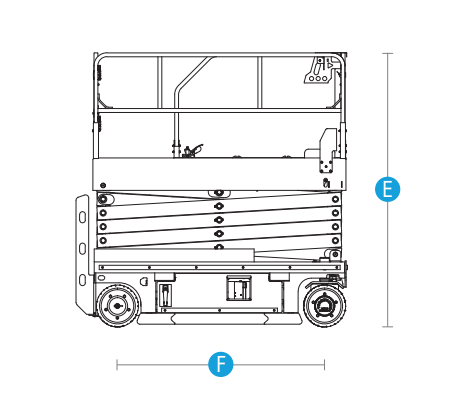

  • [E] Height - stowed Rail Unfolded

    2.6m (8'6")

  • Height - stowed Fixed Rail

  • [F] Wheelbase

    1.88m (6'2")

  • Ground Clearance
    (Pothole Guard Stowed)

    0.1m (4")

  • Ground Clearance
    (Pothole Guard Deployed)

    25mm (0.98")

  • Platform Dimensions(L×W×H)

    2.30m×1.15m×1.1m (7'6.5"×3'9"×3'7")
Performance

  • Platform Allowable Occupants
    (Indoor/Outdoor)

    2 Persons / 1 Person (Indoor/Outdoor)

  • Platform capacity

    320kg (705.6lbs)

  • Lift Extension Capacity

    120 kg (265 lbs)

  • Drive Speed-Stowed

    0 ～ 4 km/h (0 ～ 2.5 mph)

  • Drive Speed-Raised

    0 ～ 0.8 km/h (0 ～ 0.5 mph)

  • Elevation Time(Unloaded)

    63s~68s

  • Descent Time(Unloaded)

    44s~49s

  • Gradeability

    25%

  • Turning Radius
    (Inside/Outside)

    0 m/2.35 m (0/7'8.5")

  • Tilt Rating
    (Front to Back/Side to Side)

    3°/1.5°

  • Tyres-solid

    380×125 mm/solid (15×5")
Power

  • Batteries

    24 V,280 Ah, (Lead acid battery)
    25.6 V, 200 Ah, (Lithium battery)

  • Power Source

    24V DC,3.3 kW

  • Drive Mode

    24 V DC/0.85 kW
    24 V AC/0.7 kW

  • Charger Input

    100~240V AC

  • Charger Output

    30A

  • Hydraulic System Capacity

    15L (3.3 gal(UK)/4.0 gal(US))


  • Weight(Indoor/Outdoor)

    3,210kg (7,077lbs)

  • Weight(Indoor Only)

    -

  • Standards Compliance

    CE/ANSI/CSA/AS/EAC/KCS
Download Brochures
Standard features
  • 2WD×2WS
  • Maintenance-free battery
  • Fault diagnosis system
  • Non-marking tires
  • Proportional control
  • Emergency lowering system
  • Emergency stop
  • Electrophoretic painting
  • Tilt protection system
  • Flashing beacon
  • Forklift pockets and lifting points
  • Overload sensing system
  • Foldable guardrail
  • Automatic pothole protection
  • Manual storage box
  • Drivable at full height
  • Bumper rails
  • Auto braking system
  • Horn & buzzer
Optional features
  • RCBO
  • AC power to platform
  • Platform work light
  • Footswitch
  • Overhead anti-collision device
  • Telematics-ready connector
  • Lithium battery
  • AC drive motor
