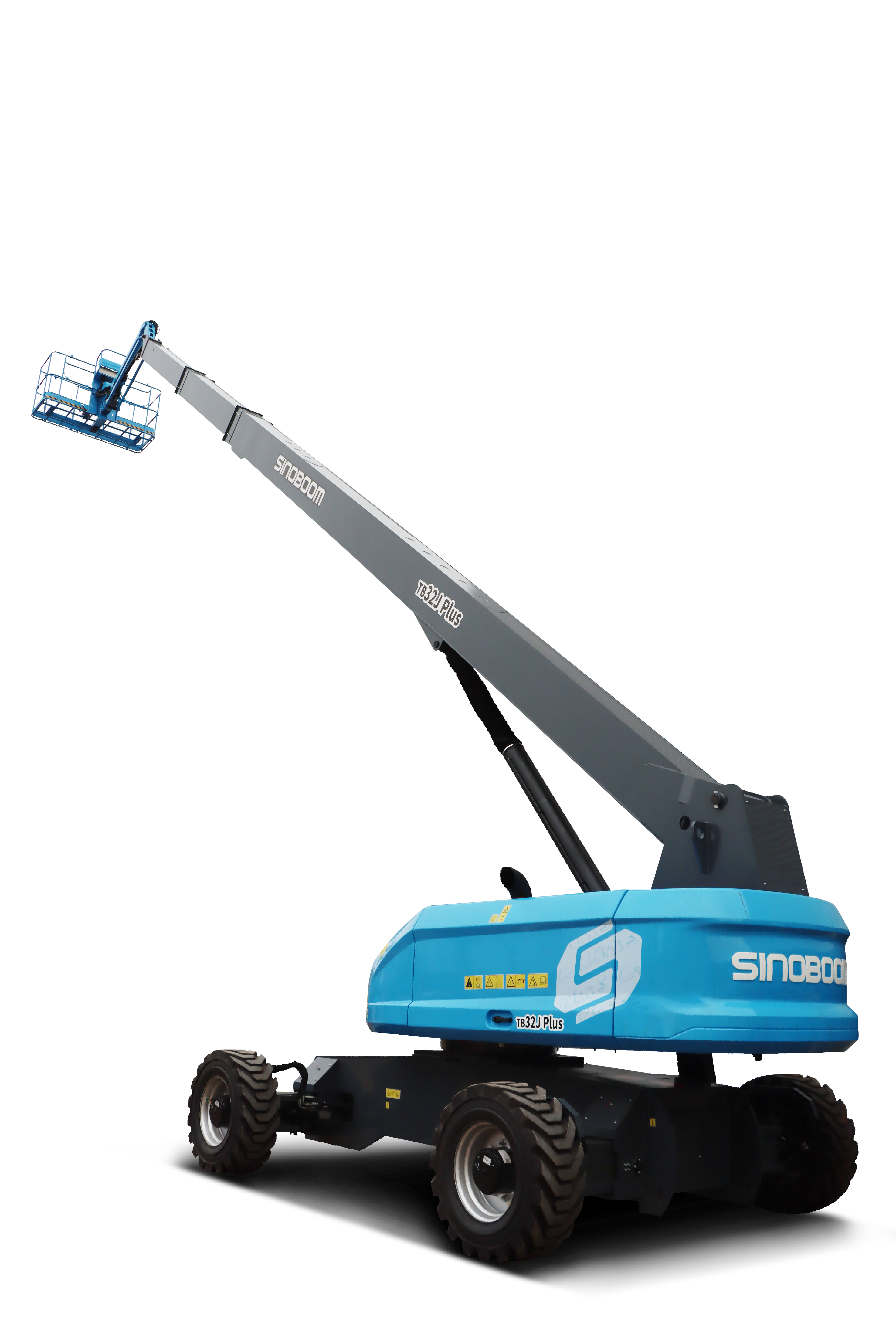

TB32J Plus (TB1060J Plus)

Engine Powered Telescopic Boom Lifts
Working height
m
Platform Capacity
kg
Gradeability
%
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

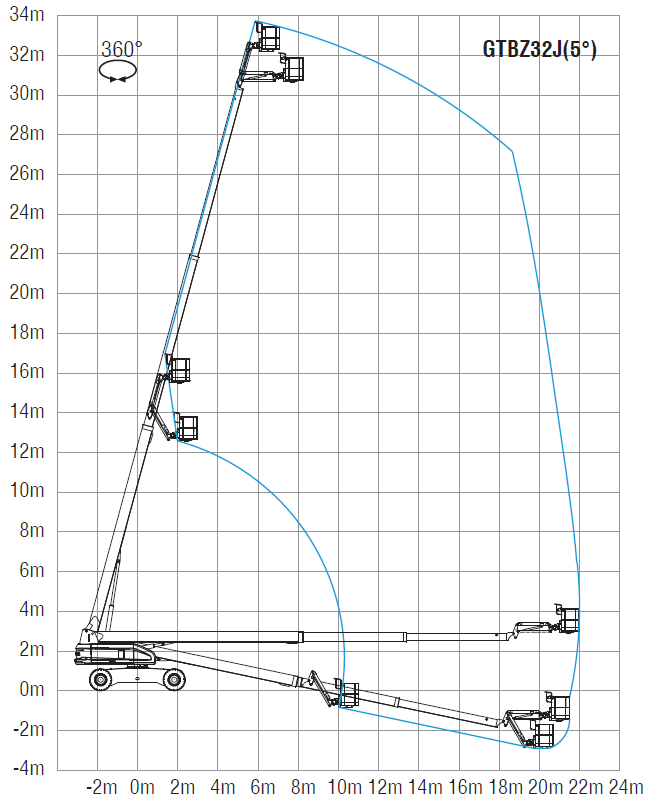

  • Max Platform Height

    32.3m (106')
  • Max Working Height

    34.3m (112'6")
  • Max Horizontal Extension

    20.4m (66'11") (Restricted) / 22.3m (73'2") (Unrestricted)

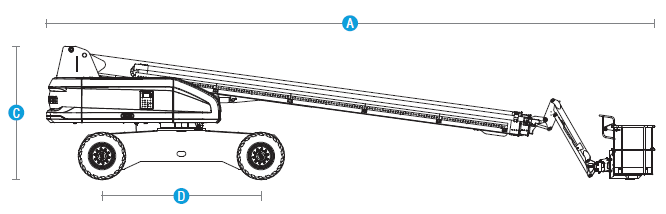

  • [A] Length-Stowed

    14.3m (46'11")

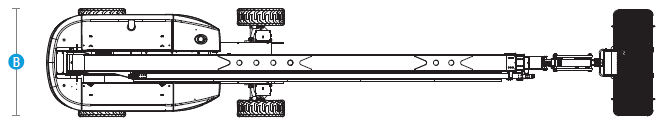

  • [B] Width

    2.49m (8'2") / 3.36m(11')
  • [C] Height-Stowed

    3.1m (10'2")
  • [D] Wheelbase

    3.66m (12')
  • Ground Clearance

    0.43m (1'5")
  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m (8'×3'×3'7")
Performance
  • Platform Capacity
    (Unrestricted)

    300kg (661lbs)
  • Platform Capacity
    (restricted)

    454kg (1,000lbs)
  • Turntable Rotation

    360° continuous
  • Platform Rotation

    160°
  • Drive Speed-Stowed

    4.4km/h (2.75mph)
  • Drive Speed-Raised

    1.1km/h (0.68mph)
  • Gradeability

    42%
  • Turning Radius-Inside

    2.56m (8'4")
  • Turning Radius-Outside

    5.57m (18'3")
  • Turntable Tailswing

    1.82m (5'11")
  • Tilt Rating

  • Max Operating Noise Level

  • Drive×Steer

    4WD×4WS
  • Tyres-solid

    385/65-22.5 (Foam filled)
Power
  • Power Source (Optional)

    [Cummins QSF2.8t3TC72, 54 kW,China 3] or
    [Deutz TD2.9 L4,55.4kW,US EPA T4f]
  • Auxiliary Power Unit

    12V DC
  • Fuel Tank Capacity-Diesel

    200L (44 UK gal / 52.8 US gal)
  • Hydraulic Tank Capacity

    267L (58.7 UK gal / 70.5 US gal)

  • Weight

    19,360kg(42,681lbs)
  • Standards Compliance

    ISO/CE/ANSI/EAC
Standard features
  • Platform electric levelling
  • 7" screen
  • Dual-speed drive motor
  • Platform 160° hydraulic rotation
  • Safety controller
  • Patented anti-slip system by flow divider/combiner valve
  • Drive enable system
  • Fault diagnosis system
  • Foam filled tyres
  • 3 joysticks with variable proportional control
  • Swing-out engine
  • 4-wheel brake
  • Horn and buzzer alarms
  • Engine restart protection
  • Emergency brake release
  • Rotating warning lamp
  • Engine malfunction automatic shutdown
  • 4WDx4WS
  • Tilt protection
  • Engine preheating
  • Overload sensing system
  • Emergency stop system
  • Max allowable inclination up to 5°
  • Emergency lowering system
  • Extendable axles
  • 360°continuous turntable rotation
  • 2.44m(8'1") platform
Optional features
  • 1.45m (4'9") work platform
  • AC power to platform
  • Telematics
  • 1.83m (6') work platform
  • Hydraulic generator
  • Platform work light
  • Solid non-marking tyres
  • Overhead anti-collision device
  • 2.44m(8'1") swing type tri-gate platform
  • Foam-filled non-marking tyres
  • Anti-crushing device
