HOME>PRODUCTS>SCISSOR LIFT>0607SE (1932SE)

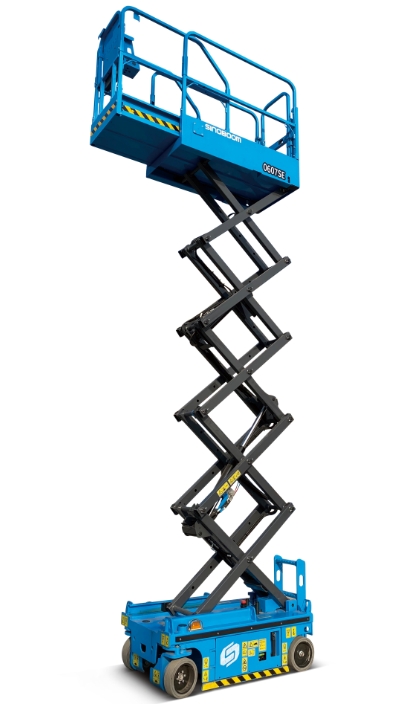

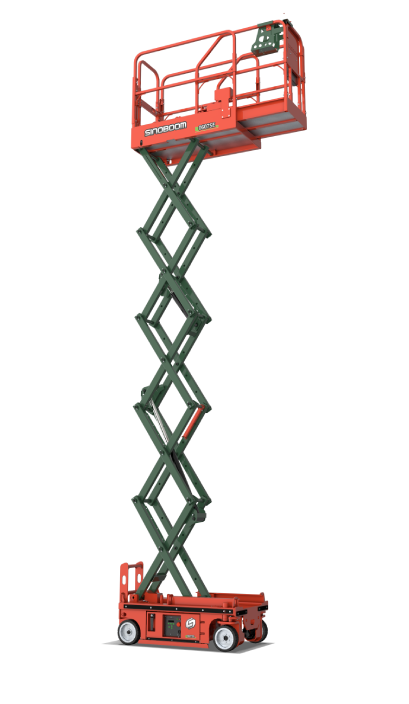

0607SE (1932SE)

Electric Drive Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    7.6 m/6.6 m (24'11.2''/21'8'')(Indoor/Outdoor)

  • [A] Max Platform Height

    5.6 m/4.6 m (18'4.5''/15')(Indoor/Outdoor)

  • [B] Max Horizontal Extension

    0.6m (2')

  • [C] Length-Stowed

    1.52 m (4'11.8")

  • [D] Width-Stowed

    0.81 m (2'7.9")

  • Height - stowed Rail Folded

    1.77 m (5'9.7")

  • [E] Height - stowed Rail Unfolded

    2.1 m (6'10.7")

  • Height - stowed Fixed Rail

    -

  • [F] Wheelbase

    1.13 m (3'8.5")

  • Ground Clearance
    (Pothole Guard Stowed)

    0.065 m (2.56")

  • Ground Clearance
    (Pothole Guard Deployed)

    0.023 m (0.91")

  • Platform Dimensions(L×W×H)

    1.37 m×0.7 m×1.1 m (4'5.9"×2'3.6"×3'7")
Performance

  • Platform Allowable Occupants
    (Indoor/Outdoor)

    2 persons (Indoor) / 1 person (Outdoor)

  • Platform capacity

    230kg (507lbs)

  • Lift Extension Capacity

    120kg (265lbs)

  • Drive Speed-Stowed

    0～4 km/h (0～2.5 mph)

  • Drive Speed-Raised

    0～0.5 km/h (0～0.31 mph)

  • Elevation Time(Unloaded)

    24s~28s

  • Descent Time(Unloaded)

    25s~30s

  • Gradeability

    25%

  • Turning Radius
    (Inside/Outside)

    0.45 m/1.6 m (1'5.7"/5'3")

  • Tilt Rating
    (Front to Back/Side to Side)

    3°/1.5°

  • Tyres-solid

    255×76 mm (10×3.2") /solid
Power

  • Batteries

    24 V,100 Ah,3 hr
    24 V,120 Ah,20 hr

  • Power Source

    24V DC

  • Drive Mode

    2WD×2WS

  • Charger Input

    100~240V AC

  • Charger Output

    15A

  • Hydraulic System Capacity

    4L (0.9 UK gal / 1.05 US gal)


  • Weight(Indoor/Outdoor)

    1,210kg (2,668lbs)

  • Weight(Indoor Only)

    -

  • Standards Compliance

    GB/CE/EAC
Download Brochures
Standard features
  • 2WD×2WS
  • Maintenance-free battery
  • Fault diagnosis system
  • Non-marking tires
  • Proportional control
  • Emergency lowering system
  • Emergency stop
  • Electrophoretic painting
  • Tilt protection system
  • Flashing beacon
  • Forklift pockets and lifting points
  • Overload sensing system
  • Foldable guardrail
  • Automatic pothole protection
  • Manual storage box
  • Drivable at full height
  • Bumper rails
  • Auto braking system
  • Horn & buzzer
  • Protection metal mesh
Optional features
  • RCBO
  • AC power to platform
  • Platform work light
  • Footswitch
  • Overhead anti-collision device
  • Telematics-ready connector
