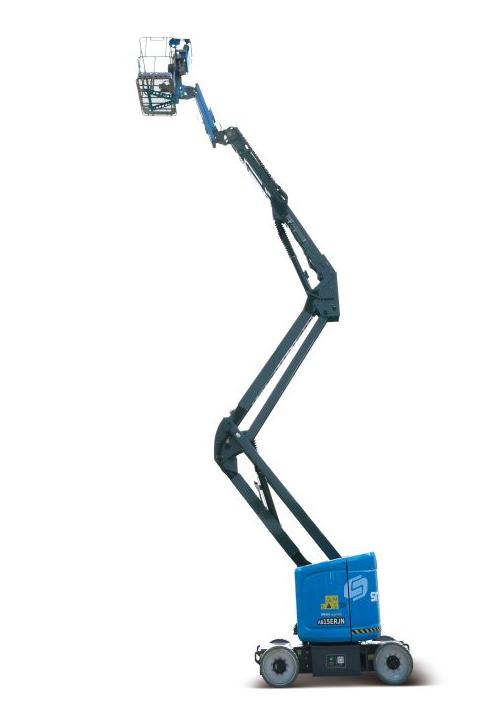

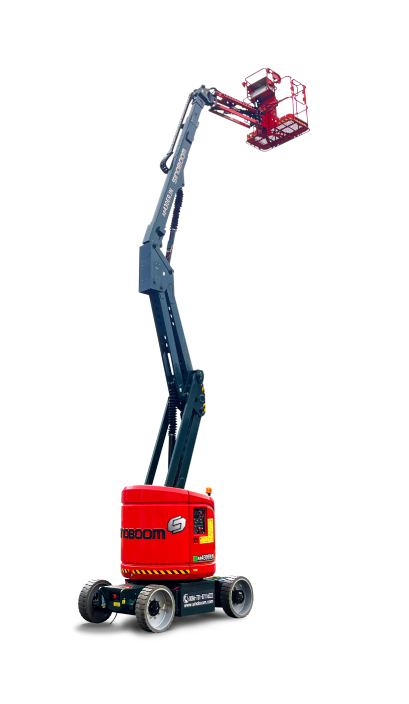

AB13ERJN (AB430ERJN)

Electric Articulated Boom Lifts

Working Height

15m

Platform Capacity

230kg

Gradeability

25%

Get a Quote

Download Brochures

SPECIFICATIONS
Standard/Optional
APPLICATIONS

Dimensions

Max Platform Height

13 m (42'8")

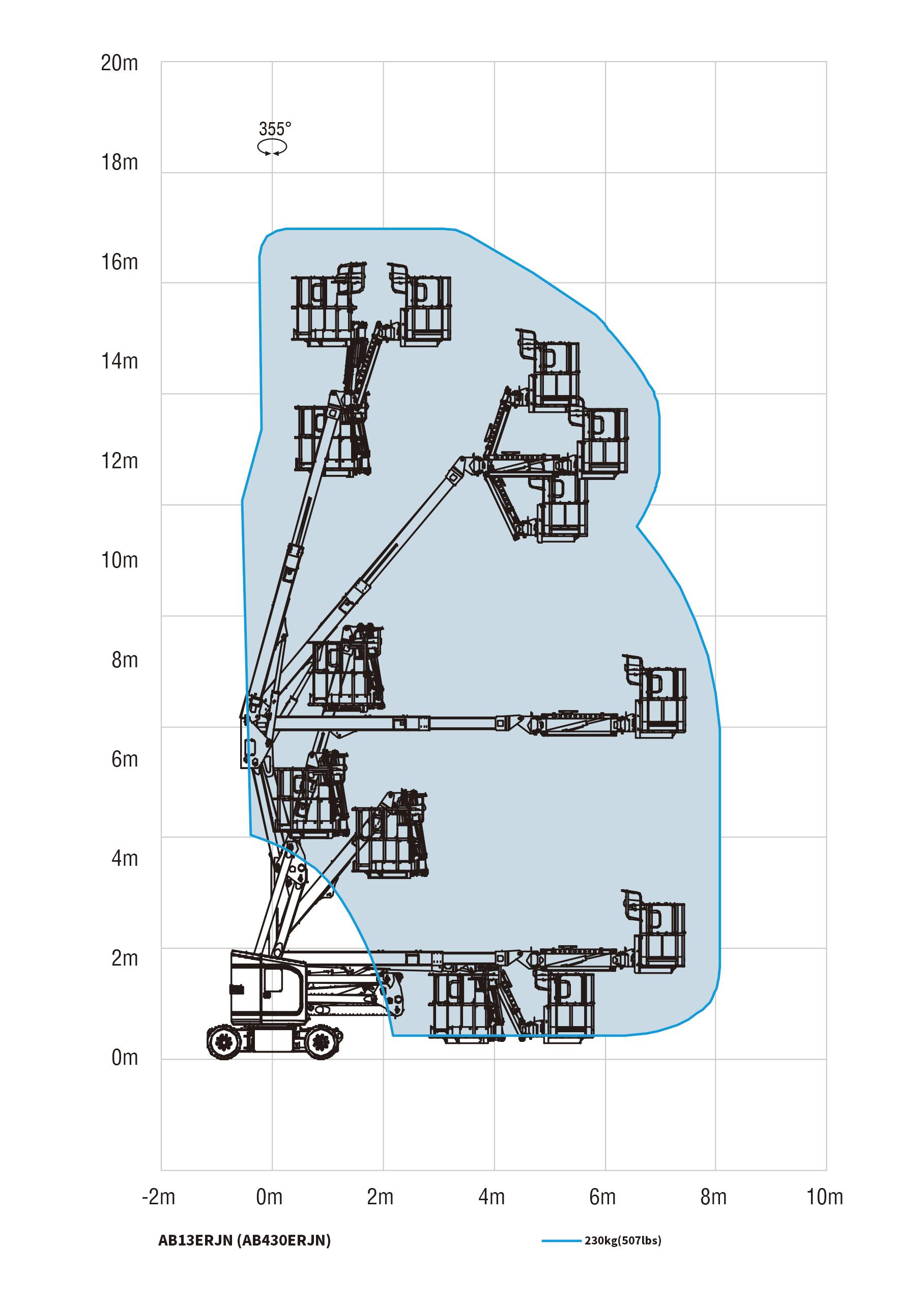

Max Working Height

15 m (49'3")
Max Horizontal Extension

7.4 m (24'3")

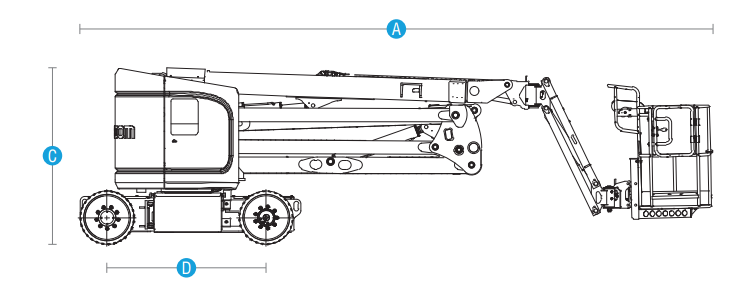

[A] Length-Stowed

6.98 m (22'11")

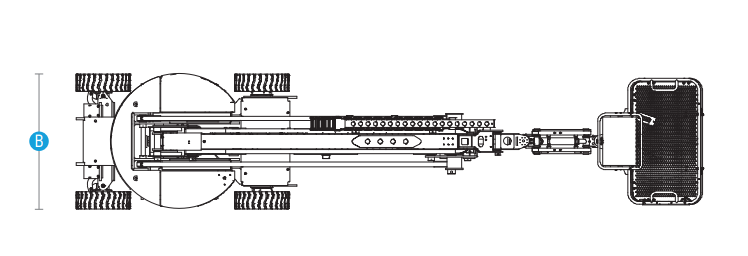

[B] Width-Stowed

1.5 m (4'11")
[C] Height-Stowed

1.98 m (6'6")
[D] Wheelbase

1.75 m (5'9")
Ground Clearance

0.135 m (5.3")(Pothole Guard Deployed)
Platform Dimensions
(L×W×H)

1.4 m×0.8 m×1.1 m (55.1"×31.5"×43.3")

Performance

Platform Capacity
(Unrestricted/2 Persons)

2 Persons
Turntable Rotation

355° / Non-Continuous
Platform Rotation

180°
Drive Speed-Stowed

0 ～ 6 km/h (0 ～ 3.7 mph)
Drive Speed-Raised

0 ～ 0.6 km/h (0 ～ 0.4 mph)
Gradeability

25% (2WD)
Turning Radius-Inside

0.9 m (2'11")
Turning Radius-Outside

3 m (9'10")
Turntable Tailswing

0 m
Tilt Rating

3°
Drive×Steer

2WD×2WS
Tyres Spec/Type

600×190 (non-marking,solid)

Power

Batteries

48V / 390Ah（lead acid battery）
48V / 315Ah（lithium battery）
Auxiliary Power Unit

12 VDC
Hydraulic Tank Capacity

40L (8.8 gal (UK)/10.6 gal (US))

Weight

7,700 kg (16,976 lbs)
Standards Compliance

CE/ANSI/AS/GB

Download Brochures

Standard features

Hydraulic platform leveling
180° platform rotation
Max tilt rating to 3°
Hydraulic cylinder protective covers

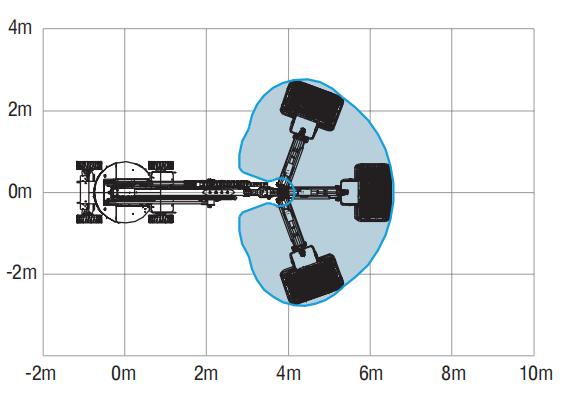

140° jib rotation(AB13ERJN)
Flashing Beacon
Tilt protection system
Weighing system
Fault diagnosis system
Emergency stop system
Emergency lowering system
Rear position and travel confirmation
AC outlet in platform
Horn and buzzer for safety warning
Manual storage box

Optional features

Anti-collision device
Platform guard rail
Platform with swing gate
Platform work lights
Tracks system (GPS)
White noise alarm
Tool box
