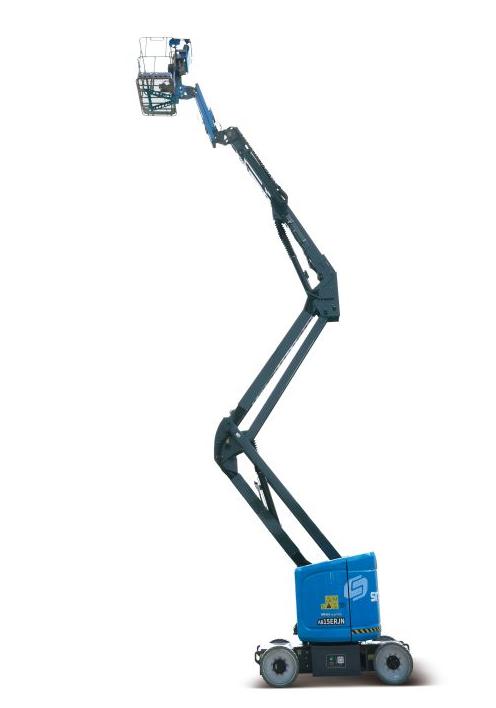

AB14EJ(AB460EJ)

Electric Articulating Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Suitable for Working in Narrow Space

    ■ These machines are designed with narow chassis, lower stowed height enables to pass standard doorways and travel in narrow aisles both indoors
    and outdoors
    ■ It is easy to get access to up and over with proportional control joysticks

  • Easy Maintenance

    ■ One button for trouble shooting by checking a 5 inch LED screen on the ground control, manuals free
    ■ AGM maintenance-free batteries come as standard, long cycle life and no worries of maintenance decreasingTCO

  • Electrical Emergency Lowering System

    ■ When the main power system is out of power or fails, it is easy and highly efficient to bring platform lowering to ground from both ground and platform control by using a separate auxiliary power unit
Dimensions

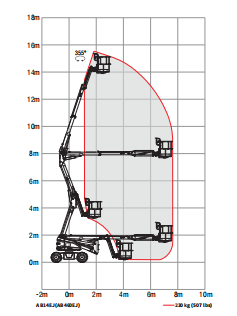

  • Max Platform Height

    14m (45'11")

  • Max Working Height

    16m (52'6")

  • Max Horizontal Extension

    7.6m (24'11")

  • [A] Length-Stowed

    6m (19'8")

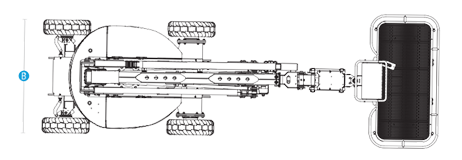

  • [B] Width-Stowed

    1.73m (5'8")

  • [C] Height-Stowed

    2m (6'7")

  • [D] Wheelbase

    1.9m (6'3")

  • Ground Clearance

    0.22m (8.7")

  • Platform Dimensions
    (L×W×H)

    1.45×0.85×1.1m (57×33.5×44")
Performance

  • Platform Capacity
    (Unrestricted/2 Persons)

    230kg (507lbs)

  • Turntable Rotation

    355° non-continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    5.2km/h (3.2mph)

  • Drive Speed-Raised

    0.8km/h (0.5mph)

  • Gradeability

    30％

  • Turning Radius-Inside

    1.15m (3'9")

  • Turning Radius-Outside

    3.51m (11'6")

  • Turntable Tailswing

    0m (0')

  • Tilt Rating

    5°

  • Drive×Steer

    2WD×2WS

  • Tyres Spec/Type

    240/55D17.5 Foam-filled
Power

  • Batteries

    8×6 V, 335 Ah (5 hr)/390 Ah (20 hr) (lead acid battery)
    51.2V / 315Ah (lithium battery)

  • Auxiliary Power Unit

    12V DC

  • Hydraulic Tank Capacity

    40L (8.8 gal (UK) / 10.6 gal (US))


  • Weight

    7,160kg (15,785lbs)

  • Standards Compliance

    CE/ANSI/CSA/AS/EAC
Download Brochures
Standard features
  • 5 inch LED screen
  • 2WD x 2WS
  • Electrical emergency lowering system
  • Proportional control with 2 joysticks
  • Automotive-grade sleeves for all pipes
  • Weighing system
  • Hydraulic platform leveling
  • Max tilt rating to 5°
  • Emergency stop system
  • Horn & buzzer
  • Footswitch
  • Fault diagnosis system
  • Flashing beacon
  • Manual storage box
  • Tilt protection system
  • Foam-filled non-marking tires
  • Telematics-ready connector
  • Secondary guarding device
Optional features
  • Solid tires
  • Overhead anti-collision device
  • Glazier kit
  • Half mesh
  • Anti-pinch rail
  • 1.45m(4'9") / 1.83m(6') platform
  • AC power to platform
