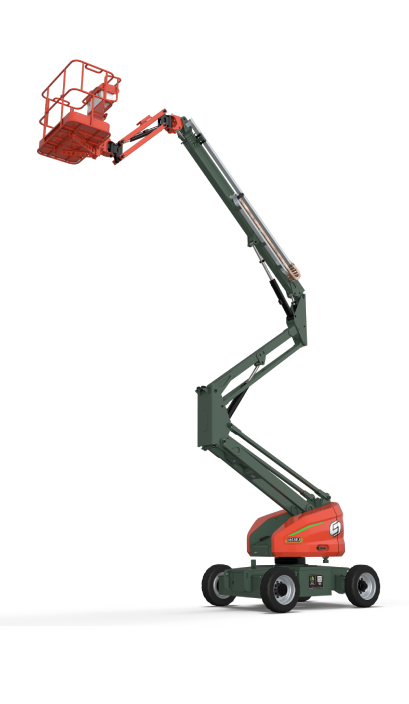

AB16EJ (AB520EJ)

Electric Articulated Boom Lifts
Working height
m
Platform Capacity
kg
Gradeability
%
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights
  • Suitable for narrow spaces

    ■ Narrow body of 1.9m(6'3"), 50mm(2") tail sweep is almost zero
  • Industry-leading adaptability

    ■ Large tilt angle up to 5°
  • Smart maintenance

    ■ Smart screen display, fault and status information display for easy
    viewing of machine status and fault diagnosis, parameters and settings
  • Green

    ■ Fully battery-powered, silent, zero emissions, long battery life,
    especially suitable for indoor work
  • Precision performance

    ■ 3 joysticks with variable proportional control, boom swing, boom
    extension, turntable rotation and walking speed, smooth start and stop
    motion, accuracy in reaching the operation target
Dimensions
  • Max Platform Height

    15.7m (51'6")
  • Max Working Height

    17.7m (58'1")

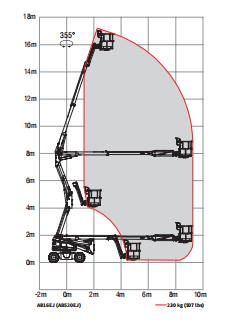

  • Max Horizontal Extension

    9.3m (30'6")
  • [A] Length-Stowed

    6.8m (22'4")

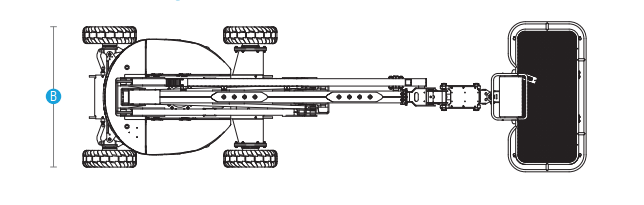

  • [B] Width-Stowed

    1.9m (6'3")
  • [C] Height-Stowed

    2m (6'7")
  • [D] Wheelbase

    1.9m (6'3“)
  • Ground Clearance

    0.22m (8.7“)
  • Platform Dimensions
    (L×W×H)

    1.83 m×0.85 m×1.1 m (6'×2'9"×3"7")
Performance
  • Platform Capacity
    (Unrestricted/2 Persons)

    230kg (507lbs)
  • Turntable Rotation

    355° non-continuous
  • Platform Rotation

    160°
  • Drive Speed-Stowed

    5.2km/h (3.2mph)
  • Drive Speed-Raised

    0.8km/h (0.5mph)
  • Gradeability

    30%
  • Turning Radius-Inside

    0.7m (2'3.5")
  • Turning Radius-Outside

    3.31m (10'10")
  • Turntable Tailswing

    50mm (2")
  • Tilt Rating

  • Drive×Steer

    2WD×2WS
  • Tyres Spec/Type

    240/55D17.5 Foam-filled
Power
  • Batteries

    48 V, 390 Ah (AGM batteries)
  • Auxiliary Power Unit

    12V DC
  • Hydraulic Tank Capacity

    40L (8.8 gal (UK) / 10.6 gal (US))

  • Weight

    7,380kg(16,270lbs)
  • Standards Compliance

    CE/ANSI/CSA/EAC
Standard features
  • 5 inch LED screen
  • 2WD x 2WS
  • Electrical emergency lowering system
  • Proportional control with 2 joysticks
  • Automotive-grade sleeves for all pipes
  • Weighing system
  • Hydraulic platform leveling
  • Max tilt rating to 5°
  • Emergency stop system
  • Horn & buzzer
  • Footswitch
  • Fault diagnosis system
  • Flashing beacon
  • Manual storage box
  • Tilt protection system
  • Foam-filled non-marking tires
  • 1.45m(4'9") platform (AB14EJ)
  • 1.83m(6') platform with swing gate (AB16EJ)
  • AC power to platform
  • Secondary guarding device
  • Telematics-ready connector
Optional features
  • Solid tires
  • Overhead anti-collision device
  • Glazier kit
  • Half mesh
  • Anti-pinch rail
