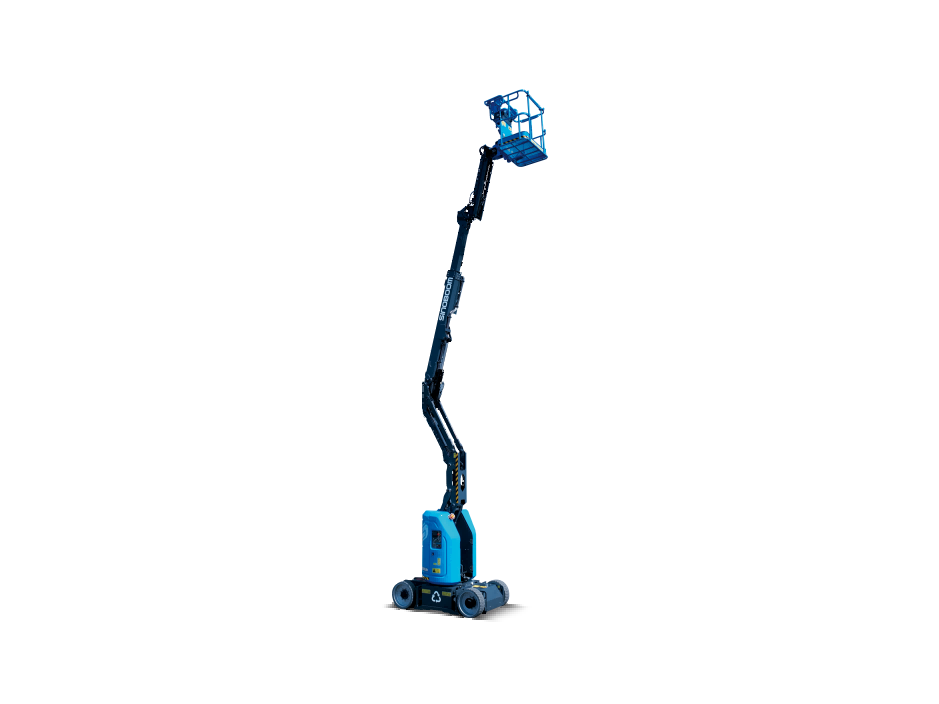

AB10ERJN (AB320ERJN)

Electric Articulated Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

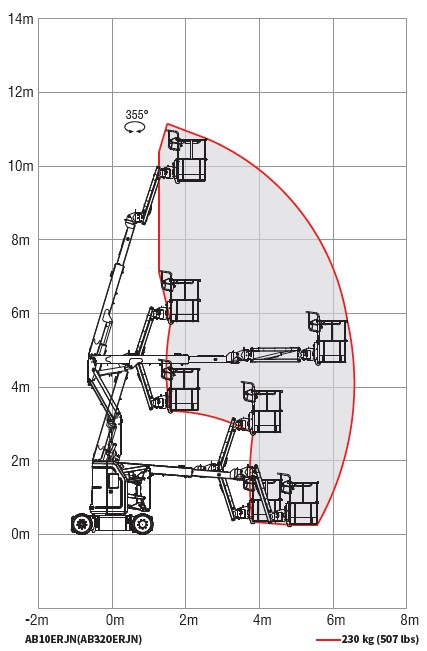

  • Max Platform Height

    9.62m (31'7")

  • Max Working Height

    11.62m (38'1")

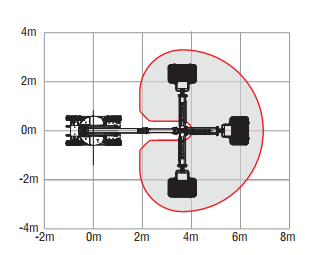

  • Max Horizontal Extension

    6.3m (20'8")

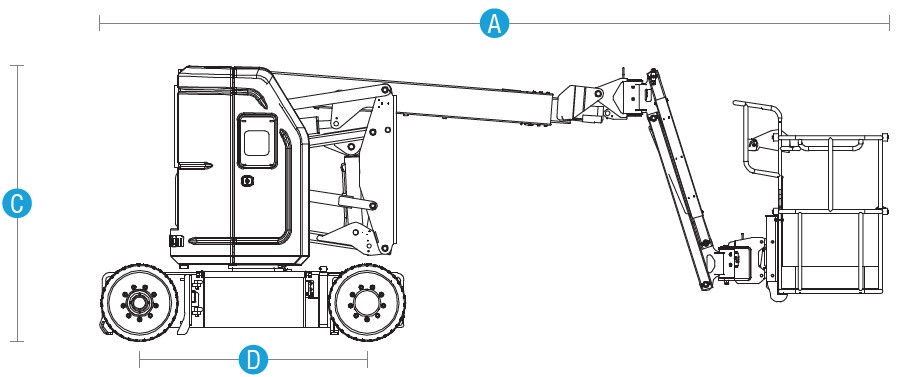

  • [A] Length-Stowed

    5.84m (19'2")

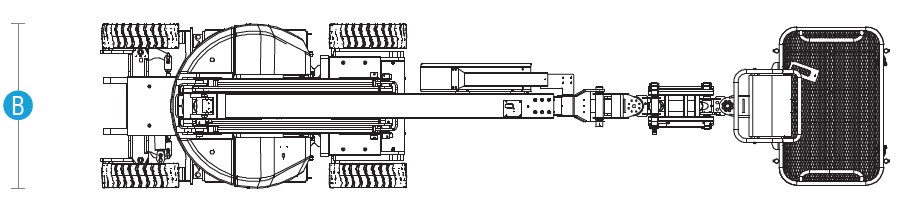

  • [B] Width-Stowed

    1.19m (3'11")

  • [C] Height-Stowed

    1.99m (6'6")

  • [D] Wheelbase

    1.65m (5'5")

  • Ground Clearance

    0.09m/0.03m (3"/1.1") (pothole guard stowed / deployed)

  • Platform Dimensions
    (L×W×H)

    1.15m×0.76m×1.1m (45.3"×30"×43.3")
Performance

  • Platform Capacity
    (Unrestricted/2 Persons)

    230kg (507lbs)

  • Turntable Rotation

    355° non-continuous

  • Platform Rotation

    180°

  • Drive Speed-Stowed

    5km/h (3.1mph)

  • Drive Speed-Raised

    0.8km/h (0.5mph)

  • Gradeability

    35％

  • Turning Radius-Inside

    1.7m (5'7")

  • Turning Radius-Outside

    3.25m (10'8")

  • Turntable Tailswing

    0m (0')

  • Tilt Rating

    3°

  • Drive×Steer

    2WD × 2WS

  • Tyres Spec/Type

    22×7×17.75'' (Solid non-marking)
Power

  • Batteries

    48V, 330Ah (AGM battery)

  • Auxiliary Power Unit

    12V DC

  • Hydraulic Tank Capacity

    20L (4.4gal (UK) / 5.3gal (US))


  • Weight

    6,760kg(14,903lbs)

  • Standards Compliance

    CE/ANSI/CSA
Download Brochures
Standard features
  • Hydraulic platform leveling
  • Automotive-grade sleeves for all pipes
  • Automatic pothole guard
  • Proportional control
  • Electric emergency lowering system
  • 5-inch LED screen
  • Manual storage box
  • Weighing system
  • 2WD × 2WS
  • Footswitch
  • Emergency stop system
  • Tilt rating up to 3°
  • Horn & buzzer
  • Fault diagnosis system
  • Platform & jib rotation 180°
  • Motion alarm
  • Tilt protection system
  • Solid non-marking tires
  • Flashing beacon
  • Telematics-ready connector
  • AGM battery
  • AC power to platform
  • Secondary guarding device
Optional features
  • Platform with swing entry gate
  • Platform work light
  • White noise alarm
