Excellent outreach
■ Leading horizontal extension (19m)
■ Double hinged articulating boom enhances flexibility and precision
■ Superior performance for demanding applications -
High efficiency
■ Accessible
■ Wireless remote control
■ Easy replacement and transport
■ Minimized selfweight and ground impact
■ Variable crawler chassis increases adaptability in diverse terrains -

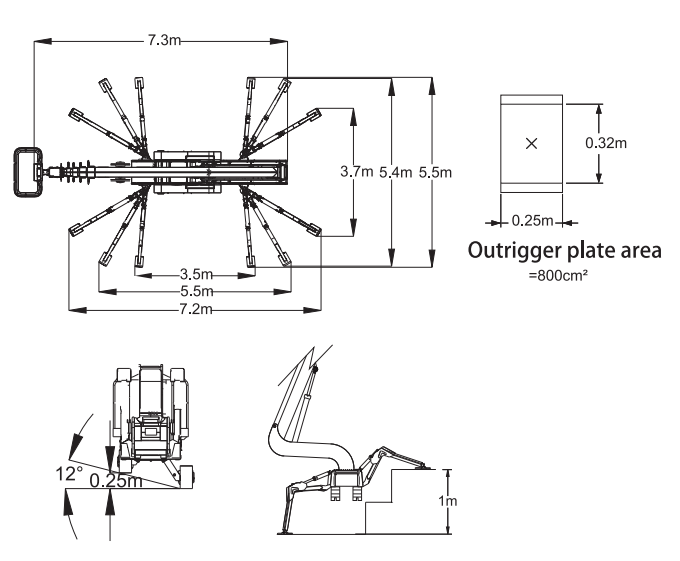

Unique outrigger
■ Three different options of outrigger working angles, providing adaptability to diverse field conditions
■ Automatically limits the boom’s operating range by detecting outrigger reaction forces, ensuring safe and stable work

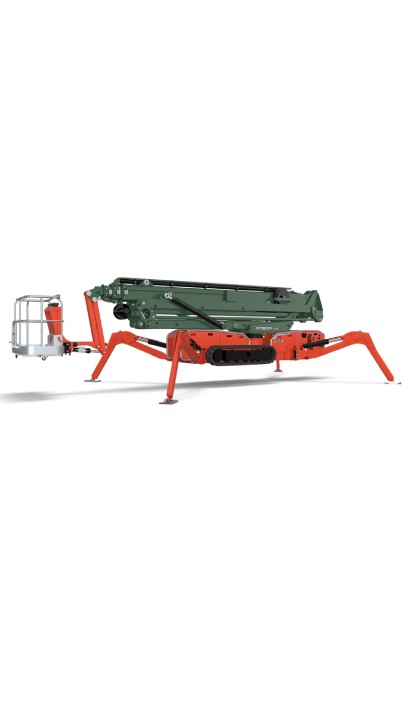

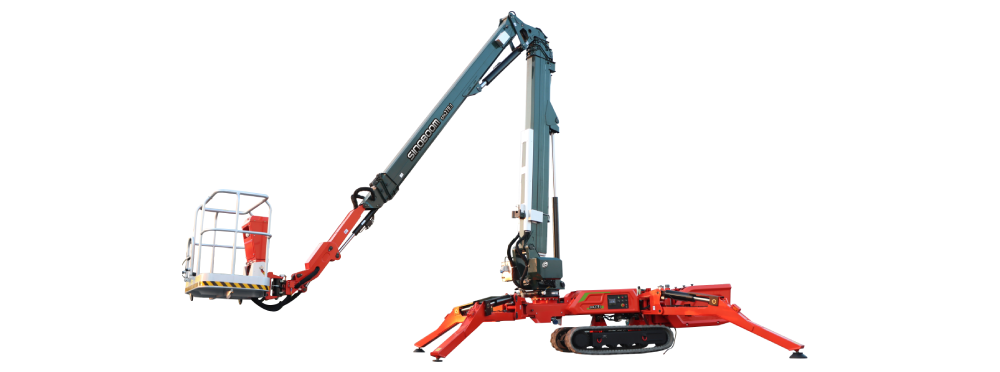

SPA33HJ
Spider Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Product Highlights

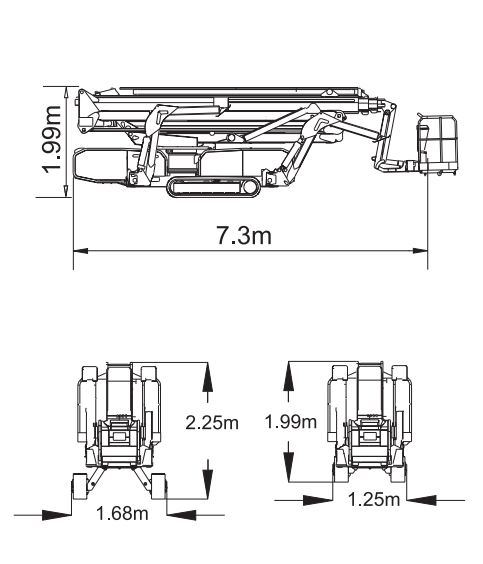

Dimensions
-

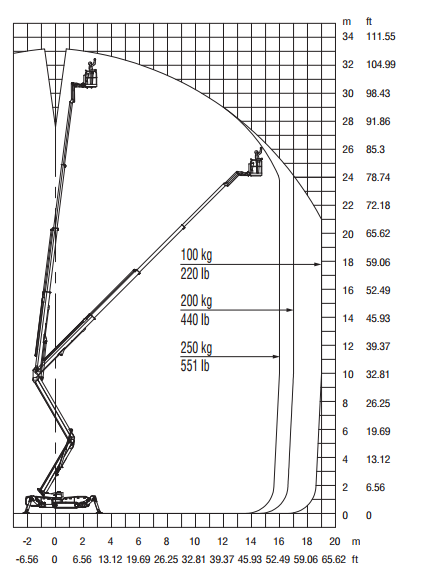

Max Working Height
33m (108'3.2") -
Max. Outreach
19m (62'4") -
Turntable Rotation
380° -
Platform Rotation
±90° -
Jib Rotation
- -
Gradeability
37% -
Platform Capacity
250 kg (551 lbs)
Performance
-
Length-Stowed
7.3m (23'11") -
Width-Stowed
1.25m (4'1") -
Height-Stowed
1.99m (6'6") -
Aluminium Platform Dimensions(L×W)
1.4 m×0.8 m×1.1 m (4'7"×2'8"×3'7") -
Weight
6,500 kg (14,330 lbs) -
Bi-energy Hybrid
Yes -
Floating Tracks
-
Standard features
- Maintenance-free battery
- Dual emergency descent system
- Remote control intelligent display
- 3-stage outrigger adjustment
- In-place steering
- Kubota engine, 3-cylinder, 18.2 kW
- Non-marking crawlers
- Automatic braking system
- Automatic leveling legs with individual settings
- Document box
- Wireless remote control
- 3-load capacity work platform
- Electrophoretic coating process
- Outrigger load weighing and limit system
- Electro-hydraulic self-leveling platform
- Remote fault diagnosis system
- Hybrid power system
- Buzzer/warning light safety alert
- High/low speed travel switch
- Proportional control
- Multi-stage adjustable ground clearance
- Platform rotation ±90°
- Quick-release work platform
- Variable crawler height and width during travel
- Load weighing system
- AC power to platform
Optional features
- Optional charging adapter
- Outrigger pad
- GPS
