SPT43HJ
Spider Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS

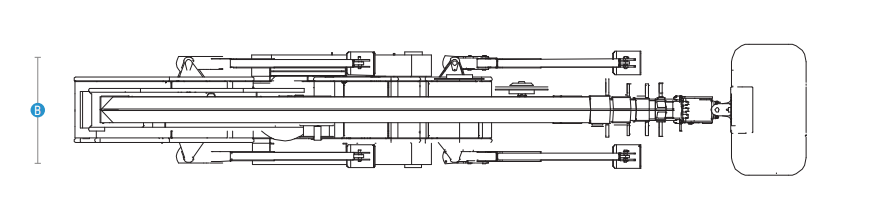

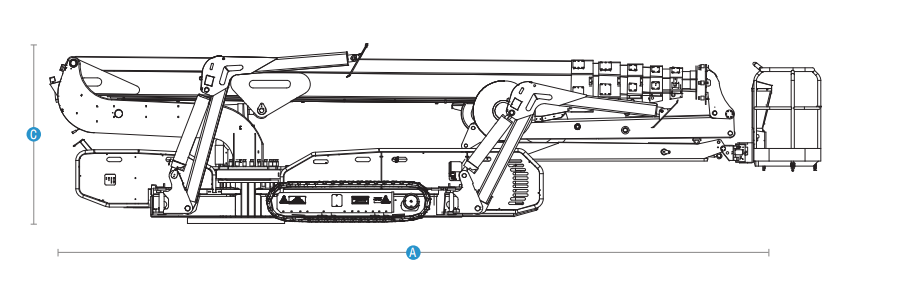

Dimensions
-

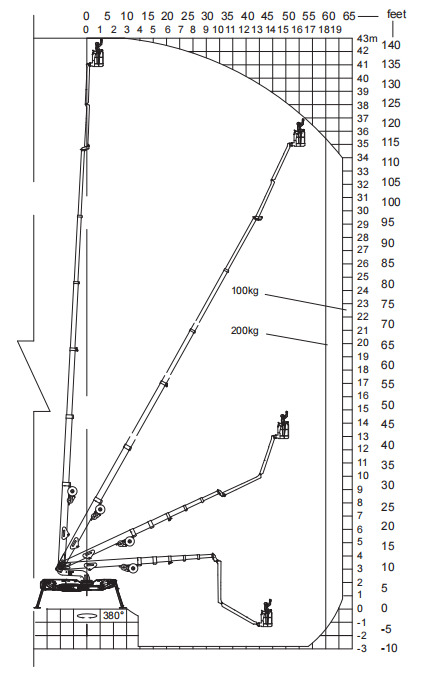

Max Working Height
43m (141'1") -
Max. Outreach
19.5 m (64') -
Turntable Rotation
±190° -
Platform Rotation
±90° -
Jib Rotation
- -
Gradeability
47% -
Platform Capacity
200kg (441 lbs)
Performance
-
Length-Stowed
8.34 m (27'4") -
Width-Stowed
1.42 m (4'8") -
Height-Stowed
1.98 m (6'6") -
Aluminium Platform Dimensions(L×W)
1.4 m×0.8 m×1.1 m (4'7"×2'8"×3'7") -
Weight
8,500 kg (18,739.3 lbs) -
Bi-energy Hybrid
Yes -
Floating Tracks
-
Standard features
- Maintenance-free battery
- multi-position outrigger adjustment
- Outrigger pad
- Engine protection against restart
- Electrophoretic coating process
- Non-marking crawlers
- High/low speed travel switch
- +/-90° basket rotation
- Remote fault diagnosis system
- Dual emergency descent system
- In-place steering
- Automatic braking system
- Wireless remote control
- Outrigger load weighing and limit system
- Hybrid power system
- Proportional control
- Quick-release work platform
- AC power to platform
- Remote control intelligent display
- Kubota engine, 3-cylinder, 18.2 kW
- Automatic leveling legs with individual settings
- 2-load capacity work platform
- Electro self-leveling platform
- Buzzer/warning light safety alert
- Multi-stage adjustable ground clearance
- Variable crawler height and width during travel
- Torque limiting system
- GPS
Optional features
- Optional charging adapter
- Document box
