Ultra work platform
■ Features an extraordinary platfomm capacity of 450kg, designed for heavy-duty applications.
■ Spacious platform (length: 2m, width: 0.8m), allowing ample space for increased load capacity and operator comfort -

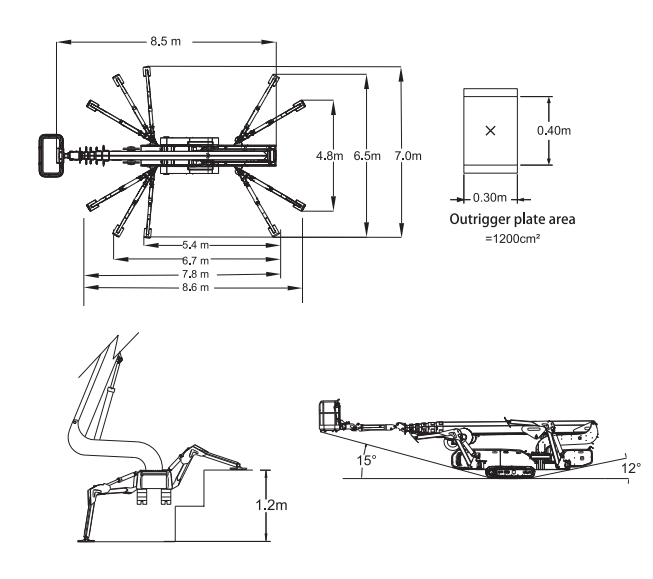

Unique outrigger
■ Three different options of outrigger working angles, providing adaptability to diverse field conditions
■ Automatically limits the boom's operating range by detecting outrigger reaction forces, ensuring safe and stable work -
High efficiency
■Telescopic boom and jib enhance flexibility and manoeuverability
■Simple structure design contributes to stable operation and time-effectiveness
■Optional power sources adapt to diverse workingconditions,equipped with a diesel engine, lead-acid battery and Ac220v plug-in power system
■ A maximum chassis clearance of 1.4m enables easy loading and unloading on site

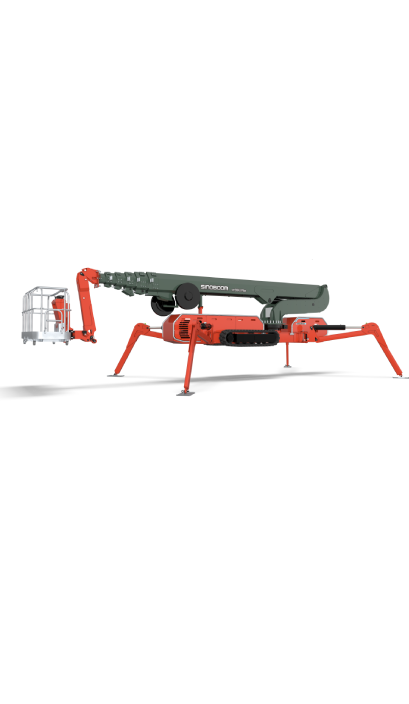

SPT38HJ Plus
Spider Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Product Highlights
Dimensions
-

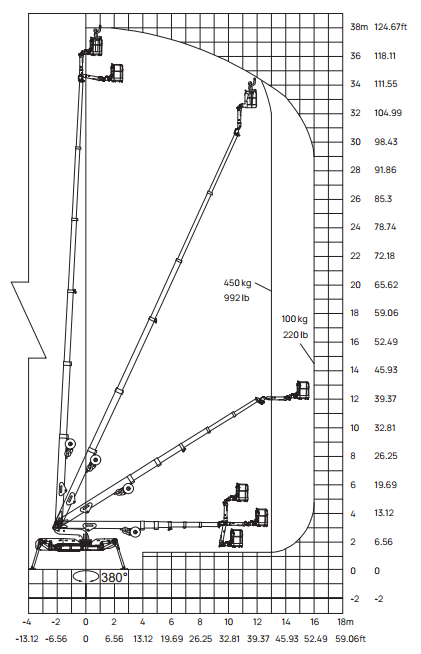

Max Working Height
38 m (124'8") -
Max. Outreach
16.5 m (54'2") -
Turntable Rotation
±190° -
Platform Rotation
+/-90° -
Jib Rotation
200° -
Gradeability
25° /47% -
Platform Capacity
450 kg (992 lbs)

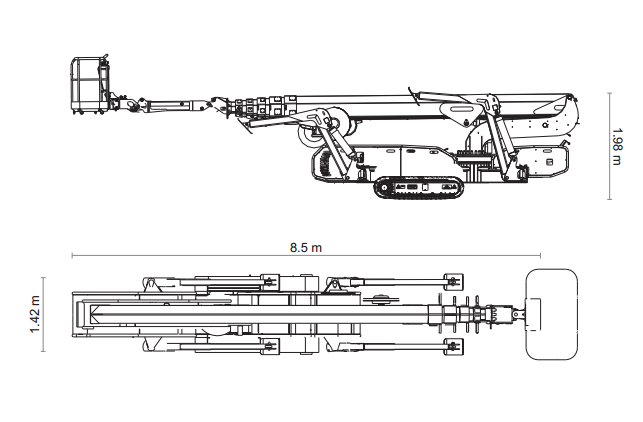

Performance
-
Length-Stowed
8.50 m (27'11") -
Width-Stowed
1.42 m (4'8") -
Height-Stowed
1.98 m (6'6") -
Aluminium Platform Dimensions(L×W)
2 m×0.8 m×1.1 m (6'7"×2'7"×3'7") -
Weight
8,460 kg (18,651 lbs) -
Bi-energy Hybrid
Yes -
Floating Tracks
Standard features
- Maintenance-free battery
- multi-position outrigger adjustment
- Non-marking crawlers
- Engine protection against restart
- Electrophoretic coating process
- Remote fault diagnosis system
- High/low speed travel switch
- +/-90° basket rotation
- Weighing system
- Dual emergency descent system
- In-place steering
- Automatic braking system
- Wireless remote control
- Outrigger load weighing and limit system
- Hybrid power system
- Proportional control
- Quick-release work platform
- AC power to platform
- Remote control intelligent display
- Kubota engine, 3-cylinder, 18.2 kW
- Automatic leveling legs with individual settings
- 2-load capacity work platform
- Electro self-leveling platform
- Buzzer/warning light safety alert
- Multi-stage adjustable ground clearance
- Variable crawler height and width during travel
- Torque limiting system
- GPS
- Outrigger pad
Optional features
- Optional charging adapter
- Document box
