Lightweight and compact
■ Lightweight (3.9 tons), ideal for portability and manoeuverability
■ Ultra-compact stowed dimensions are designed to access and operate in confined spaces
■ Non-marking crawlers for standard configuration
■ Equipped with height and width of track adjustment capabilities, including unilateral adjustment, for precise positioning on uneven terrain -
Versatile, flexible and stable
■ Comprehensive operational range enables up-and-over work at height, lowering work at depth, and lateral outstretch work for maximum versatility
■ 360°continuous turntable rotation allows seamless and time-efficient operation with enhanced flexibility
■ The double telescopic boom design, as opposed to a multiarticulating boom, minimizes swing during extension and retraction, improving stability and operational control
■ Double telescopic boom engineered for adaptability and a broad range of applications, providing superior reach and functionality -
User-Friendly and easy maintenance
■ The graphical interface is intuitive and user friendly for the operator
■ The deployment of a real time, self-diagnosis display guarantees the whole operation is under continuous monitoring and faults can be rectified quickly
■ Components are highly compatible with boom lift products, catering to fast accessory availability and convenient maintenance

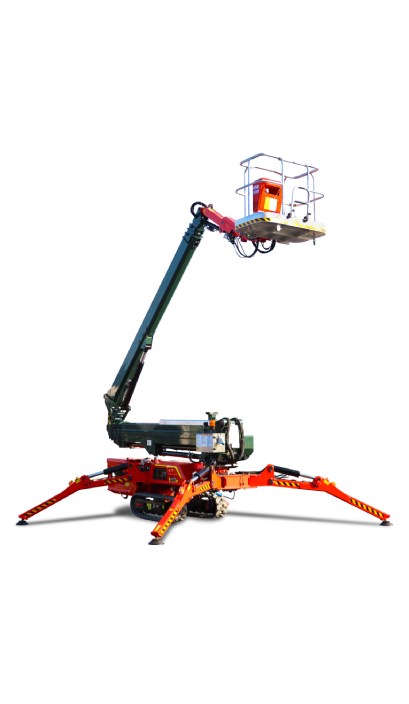

SPA27J
Spider Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Product Highlights

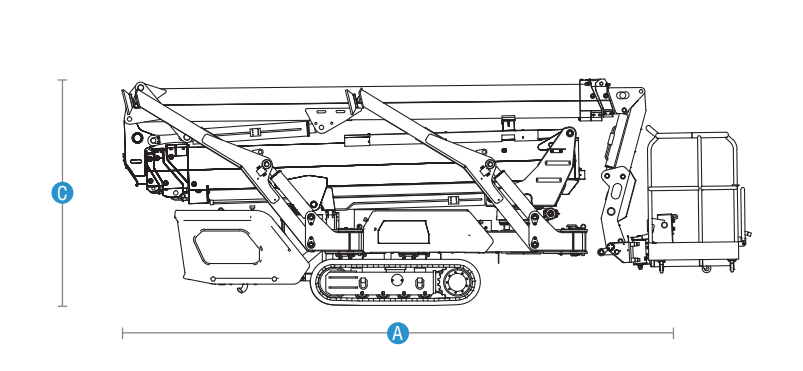

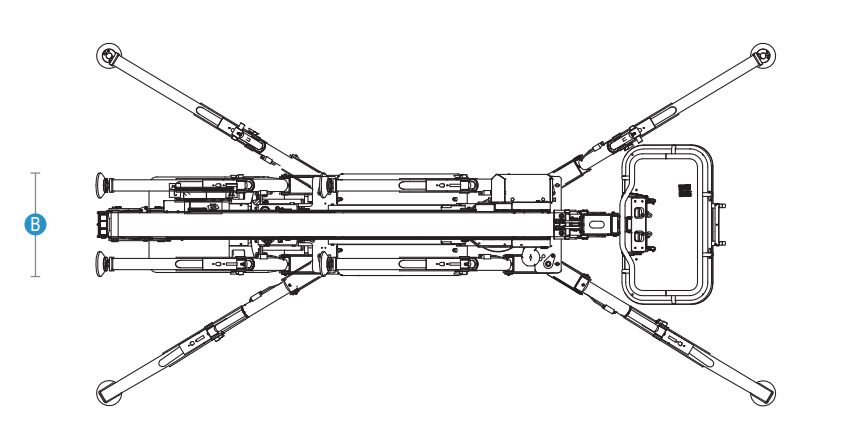

Dimensions
-

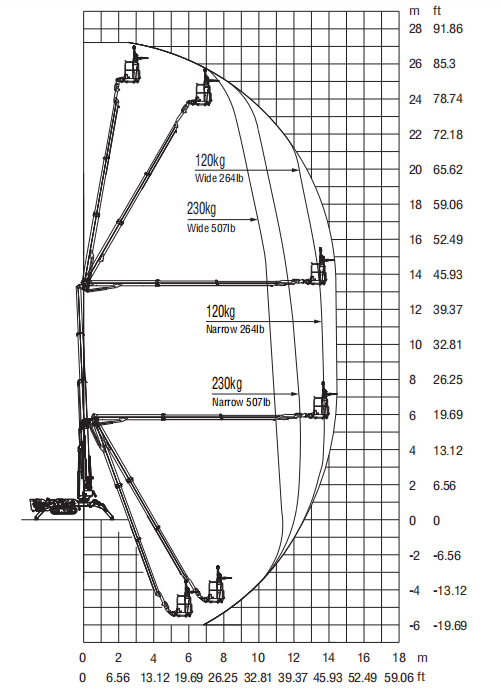

Max Working Height
27 m (88'7") -
Max. Outreach
14.2 m (46'7") -
Turntable Rotation
360° continuous -
Platform Rotation
±90° -
Jib Rotation
110° -
Gradeability
30% -
Platform Capacity
230 kg (507 lbs)
Performance
-
Length-Stowed
4.9 m (16'1") -
Width-Stowed
0.9 m (2'11") -
Height-Stowed
1.99 m (6'6") -
Aluminium Platform Dimensions(L×W)
1.4 m×0.8 m×1.1 m (4'7"×2'7.4"×3'7.3") -
Weight
3,900 kg (8,600 lbs) -
Bi-energy Hybrid
-
Floating Tracks
Standard features
- Maintenance-free battery
- Load weighing system
- Intelligent display

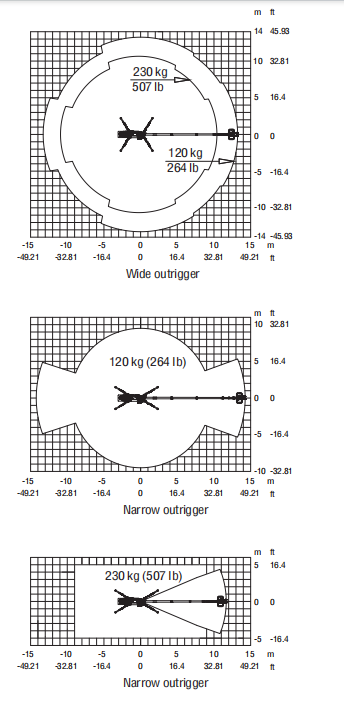

- 2-stage outrigger adjustment
- Triple emergency descent system
- Kubota engine, 3-cylinder, 16.1 kW
- Non-marking crawlers
- In-place steering
- One-touch leg leveling and individual setting
- Document box
- Automatic braking system
- Two-stage load capacity work platform
- Electrophoretic coating process
- Wireless remote control
- Self-leveling platform
- Remote fault diagnosis system
- Proportional control
- Buzzer/Warning light safety alert
- High/low speed travel
- Quick-release work platform
- Multi-stage ground clearance adjustment for undercarriage
- +/-90° basket rotation
- AC power to platform
- Variable undercarriage height and width during travel
Optional features
- Optional charging adapter
- Outrigger pad
- GPS
- Inverter
