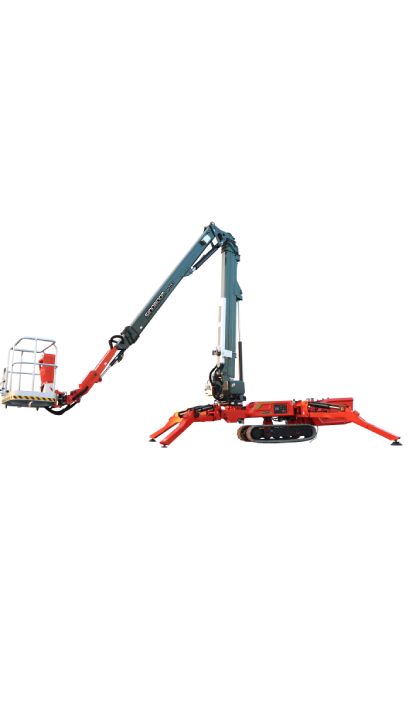

SPA27EJ
SPIDER LIFTS
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS

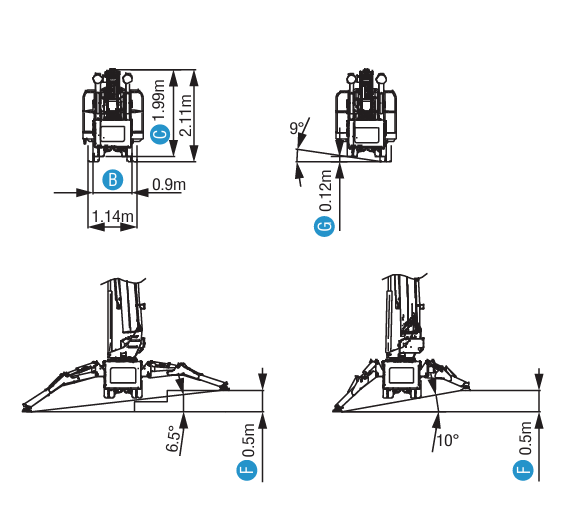

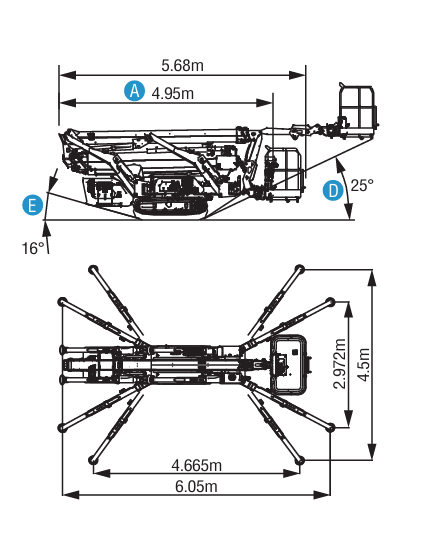

Dimensions
-

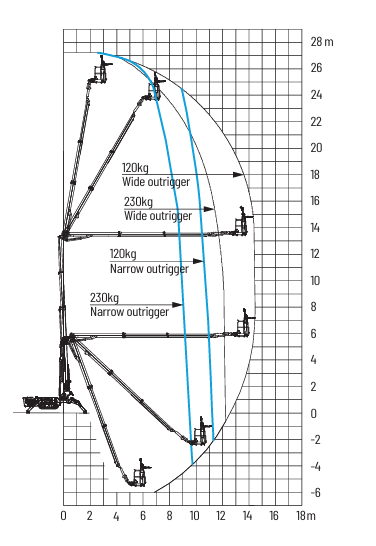

Max Working Height
27 m (88'7") -
Max. Outreach
14.2 m (46'7") -
Turntable Rotation
360 ° continuous -
Platform Rotation
±90° -
Jib Rotation
-
Gradeability
30% -
Platform Capacity
120 kg/230 kg (265 lbs/507 lbs)
Performance
-
Length-Stowed
4.95 m (16'3") -
Width-Stowed
0.9 m (2'11") -
Height-Stowed
1.99m (6'6") -
Aluminium Platform Dimensions(L×W)
1.4 m×0.8 m (4'7"×2'7.4") -
Weight
4,500 kg (9,921 lbs) -
Bi-energy Hybrid
NO -
Floating Tracks
Standard features
- LFP Battery
- 3 charging modes: 220V 10A / 16A / 32A
- height- and width-adjustable crawler track
- One-touch leg leveling and individual setting
- 2-stage outrigger adjustment
- One-touch stow function
- Multi-stage ground clearance adjustment for chassis
- Electrophoretic coating process
- Steel outrigger cylinder protection cover
- Wireless remote control with wired backup mode
- Proportional control
- Intelligent display
- Remote fault diagnosis system
- Load weighing system
- Emergency descent system
- Automatic braking system
- Buzzer/Warning light safety alert
- File tray
- Electric-Drive
- Non-marking tracks
- High/low travel speed
- AC power to platform
- Self-leveling platform
- Quick-release work platform
- Two-stage load capacity work platform
- +/- 90° basket rotation
Optional features
- Optional charging adapter
- Remote control extension cable
- Outrigger pad
- GPS
- Overhead anti-collision device
- Emergency stop at platform control
