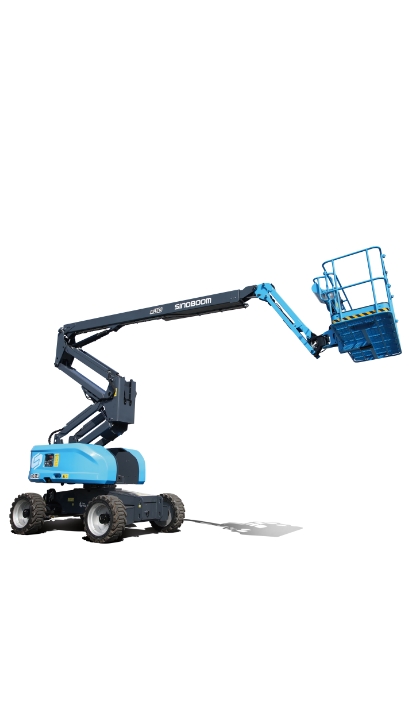

AB18EJ (AB600EJ)

Electric Articulated Boom Lifts

Working Height

20.2m

Platform Capacity

230kg

Gradeability

40%

Get a Quote

Download Brochures

SPECIFICATIONS
Standard/Optional
APPLICATIONS

Dimensions

Max Platform Height

18.2m (51'6")

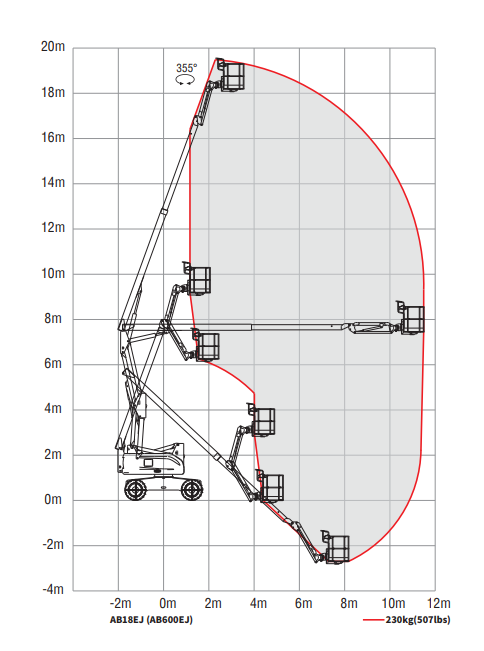

Max Working Height

20.2m (66'3")
Max Horizontal Extension

11.5m (37'9")

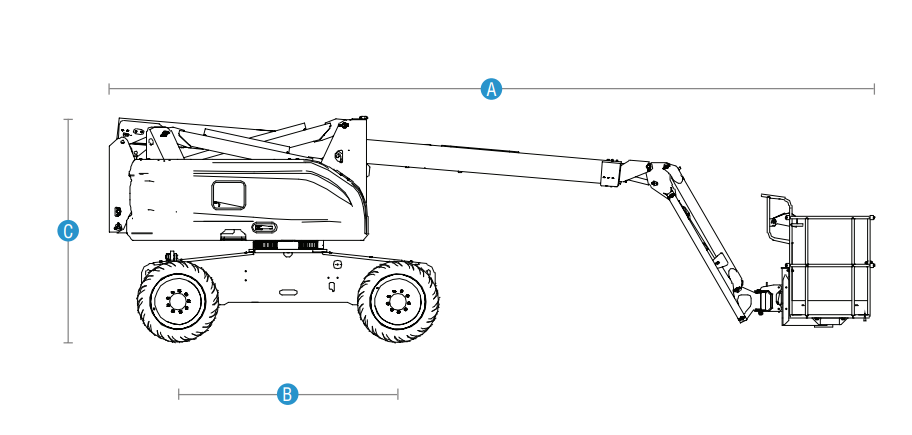

[A] Length-Stowed

8.7m (28'7")
[B] Width-Stowed

2.49m (8'2")
[C] Height-Stowed

2.56m (8'5")

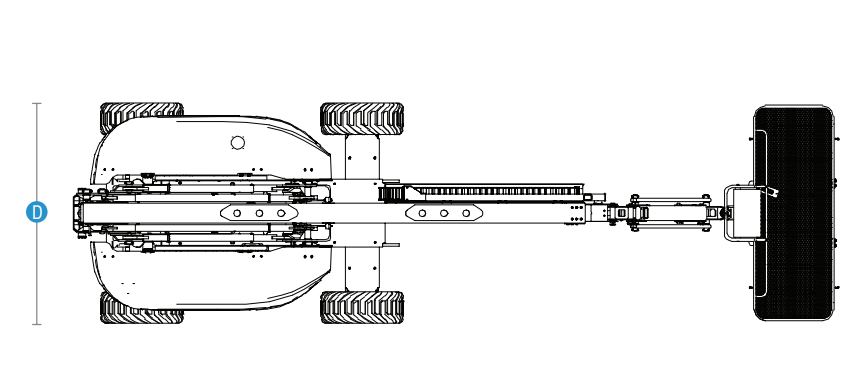

[D] Wheelbase

2.49m (8'2")
Ground Clearance

0.46m (1'6")
Platform Dimensions
(L×W×H)

2.44×0.91×1.1m (8'×3'×3'7")

Performance

Platform Capacity
(Unrestricted/2 Persons)

230kg (507lbs)
Turntable Rotation

355° non-continuous
Platform Rotation

180°
Drive Speed-Stowed

6.5km/h (4mph)
Drive Speed-Raised

1.1km/h (0.68mph)
Gradeability

40％
Turning Radius-Inside

2.4m (7'10")
Turning Radius-Outside

5.55m (18'3")
Turntable Tailswing

0.8m (2'7")
Tilt Rating

5°
Drive×Steer

4WD×2WS
Tyres Spec/Type

240/55D625 Foam-filled

Power

Batteries

48 V, 390 Ah (Lead acid battery)
Auxiliary Power Unit

12V DC
Hydraulic Tank Capacity

70L (15.4 UK gal / 18.5 US gal)

Weight

8,300kg (18,298lbs)
Standards Compliance

CE/EAC

Download Brochures

Standard features

Active oscillating function
5-in display screen
4WD × 2WS
Proportional control with 3 joysticks
Automotive-grade sleeves for all pipes
Emergency lowering system
Hydraulic platform leveling
Max tilt rating to 5°
Weighing system
Tilt protection system
Horn & buzzer
Emergency stop system
Flashing beacon
Footswitch
Fault diagnosis system
Foam-filled non-marking tires
2.44 m (8') platform
Manual storage box

Optional features

AC power to platform
Solid tires
1.45m (4'9") platform
1.83 m (6') work platform
1.83 m (8')/2.44 m (8') platform with swinging gate
Platform work light
Secondary guarding device
Overhead anti-collision device
Glazier kit (for platform with swinging gate)
Telematics-ready connector
Half mesh (for platform with swinging gate)
