Telescopic boom and double jibs
■ 52 meter ultra-high working height
■ Double jibs design expands the range of operational possibilities
■ Maximum lowering depth reaches to 4 meters -
Dual adjustable track
■ The adjustable width of front track serves excellent navigation and manoeuverability in narrow track mode, and enhanced stability, with a low center of gravity, in wide track mode
■ The height of rear track is adjustable to ensure the safety in climbing
■ Rear track steering control empowers superior manoeuverability -

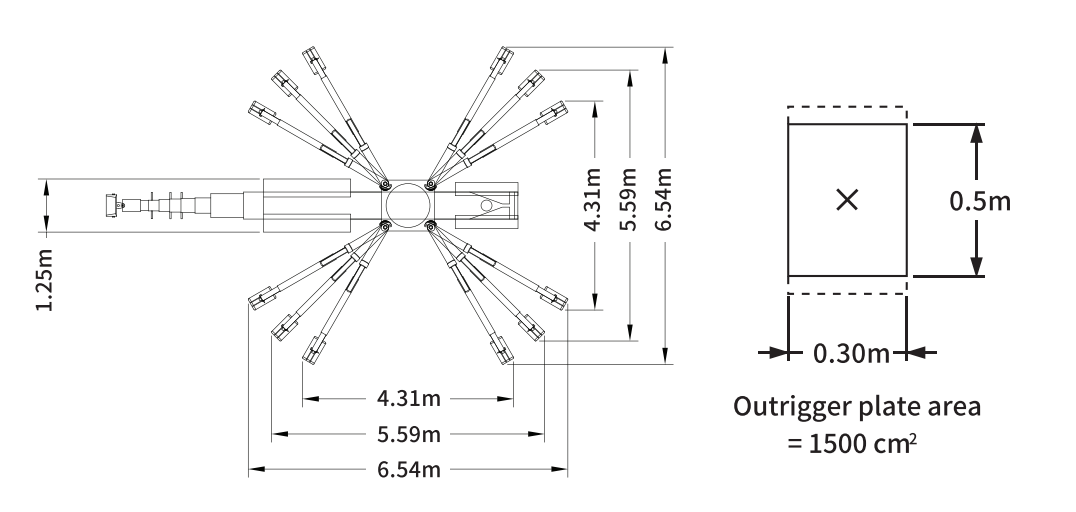

Unique outrigger
■ Three different options of outrigger working angles, providing adaptability to diverse field conditions
■ Automatically limits the boom’s operating range by detecting outrigger reaction forces, ensuring safe and stable work -
High efficiency
■ Multi-power sources adapt to diverse working conditions, equipped with a diesel engine, lead-acid battery and AC220V plug-in power system
■ A maximum chassis clearance of 1.4m enables easy loading and unloading on site
SPT52HJ
Spider Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Product Highlights
Dimensions
-
Max Working Height
52 m (170'6") -
Max. Outreach
17 m (55'9") -
Turntable Rotation
375° -
Platform Rotation
+/-90° -
Jib Rotation
200° -
Gradeability
20° /37% -
Platform Capacity
200 kg (441 lbs)
Performance
-

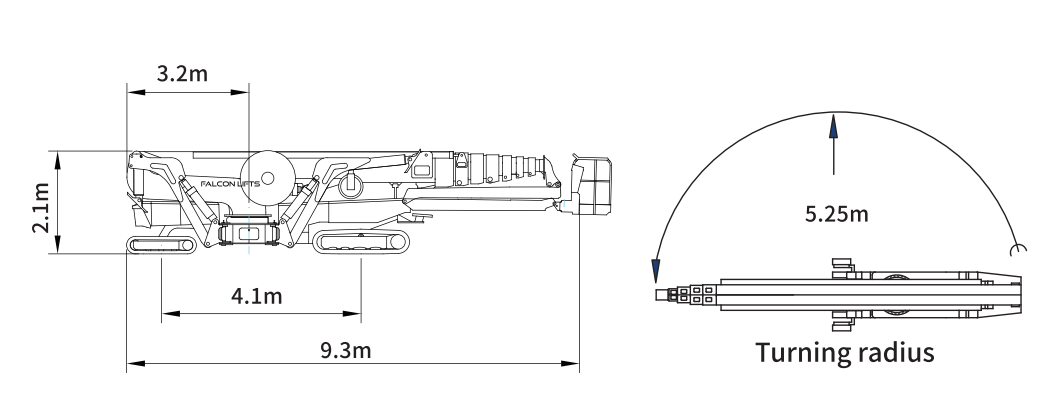

Length-Stowed
9.30 m (30'6") -
Width-Stowed
1.25 m (4'1") -
Height-Stowed
2.10 m (6'10") -
Aluminium Platform Dimensions(L×W)
0.8m×1.4 m (2'8"×4'7"） -
Weight
13,500 kg (29，762 lbs） -
Bi-energy Hybrid
Yes -
Floating Tracks
Standard features
- Automatic stability& outreach control
- Computer controlled (can-bus)
- Proportional control of all functions
- Self-propelled
- Battery powered with charger (400 Ah)
- Double jib
- 375" turret rotation, with integrated stop
- Non marking crawlers
- +/-90° basket rotation
- Individual setting of each outrigger
- Electronic checking of the power system (PLC)
- Manual pump system for emergencylowering
- Ability to self-load onto trucks or trailers
- Double crawler system
- Front crawler section adjustable
- Special outrigger footplates
- Adjustable rack width
- Minimum width only 1.25 m
- Space for tools etc. in basket
- Storage room with lock in chassis
- Diesel engine
- Wireless remote control of all functions
- Sinoboom Service Tool (remote access via laptop)
Optional features
