HOME>PRODUCTS>ARTICULATING BOOM LIFT>AB10J (AB340J)

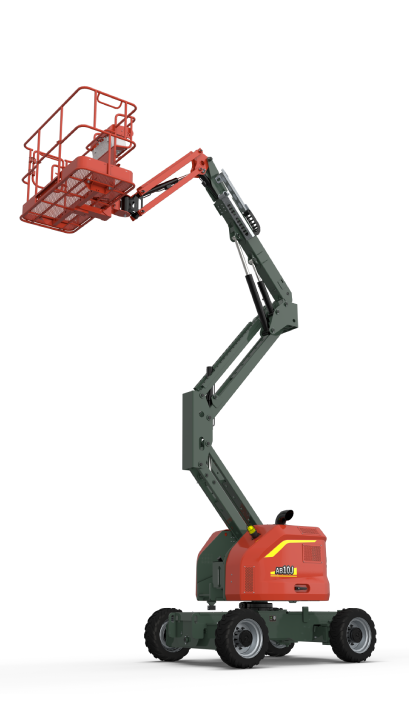

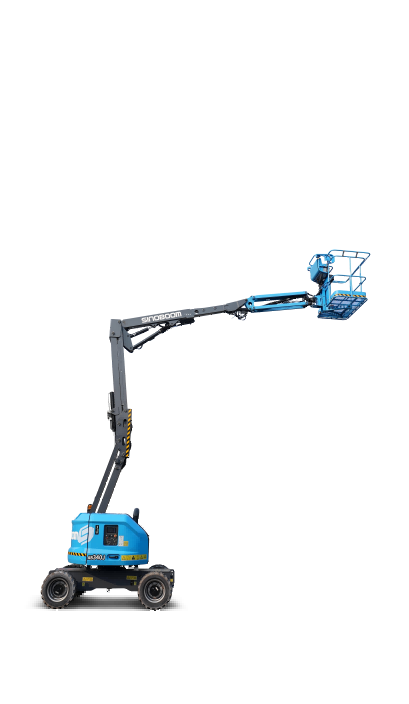

AB10J (AB340J)

Engine Powered Articulated Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

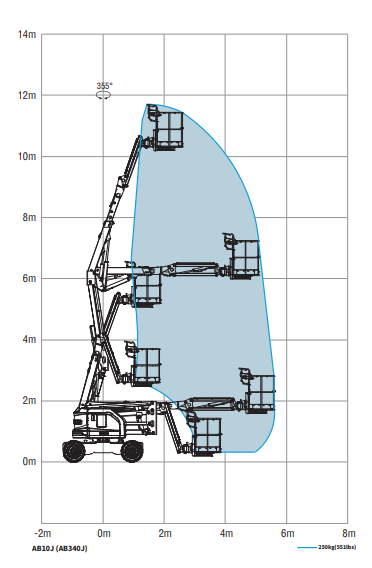

  • Max Platform Height

    10.38 m (34'1")

  • Max Working Height

    12.38 m (40'7")

  • Max Horizontal Extension

    5.9 m (19'4")

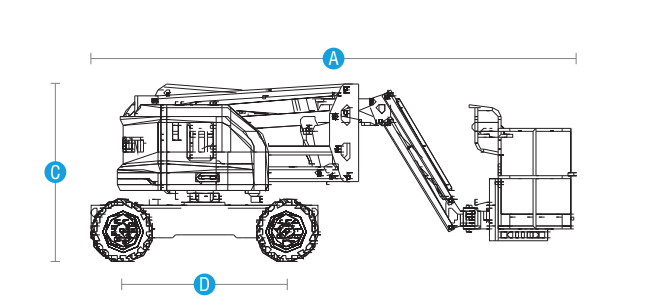

  • [A] Length-Stowed

    5.52 m (18'1'')

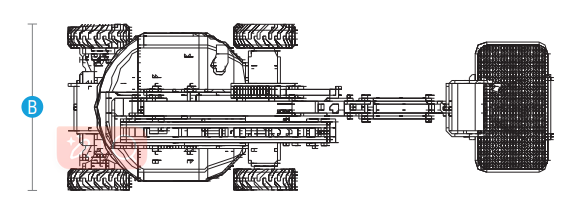

  • [B] Width-Stowed

    1.85 m (6'1")

  • [C] Height-Stowed

    1.85 m (6'1")

  • [D] Wheelbase

    1.88 m (6'2")

  • Ground Clearance

    0.31 m (1')

  • Platform Dimensions(L×W×H)

    1.45 m×0.85 m×1.1 m (57.1"×33.5"×43.3")
Performance

  • Platform Capacity
    (Unrestricted/2 Persons)

    250 kg (551 lbs)

  • Turntable Rotation

    355 °non-continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    0 ～ 5 km/h (0 ～ 3.1 mph)

  • Drive Speed-Raised

    0 ～ 0.8 km/h (0 ～ 0.5 mph)

  • Gradeability

    40%

  • Turning Radius-Inside

    1.5 m ((4'11")

  • Turning Radius-Outside

    3.9 m (12'10")

  • Turntable Tailswing

    0 m

  • Tilt Rating

    3° / 4.5°

  • Max Operating Noise Level

    -

  • Drive×Steer

    4WD x 2WS

  • Tyres Spec/Type

    27×10.5-15 Foam-filled RT non-marking tires
Power

  • Power source(optional)

    18.2 kW/3000 rpm/ D1105-EF02_CN4/Kubota//EU stage V、EPA Tier 4F

  • Auxiliary Power Unit

    12 V DC

  • Fuel Tank Capacity-Diesel

    38L (8.4 gal (UK)/10 gal (US))

  • Hydraulic Tank Capacity

    78L (17.2 gal (UK)/20.6 gal (US))


  • Weight

    4,990 kg (11,001 lbs)

  • Standards Compliance

    CE/ANSI/CSA/AS
Download Brochures
Standard features
  • Active oscillating axle
  • 7 inch LED screen
  • 4WD x 2WS
  • Proportional control
  • Tilt rating 3° /4.5°
  • Emergency lowering system
  • Hydraulic platform leveling
  • Automotive-grade sleeves for all pipes
  • Weighing system
  • Horn & buzzer
  • 4-wheel brake
  • Emergency stop system
  • Flashing beacon
  • 355 ° non-continuous rotation
  • Fault diagnosis system
  • All motion alarm
  • Swing-out engine tray
  • Tilt protection system
  • Foam-filled non-marking RT tires
  • Engine preheating
  • Anti-pinch device
  • Two-speed travel motor
  • Anti-restart protection for engine
  • Automatic engine shutdown in case of malfunction
  • Divider/combiner anti-slip system
  • Mechanical release for travel
  • Tool box
  • Manual storage box
Optional features
  • Platform work light
  • Overhead anti-collision device
  • Telematics-ready connector
  • White noise alarm
