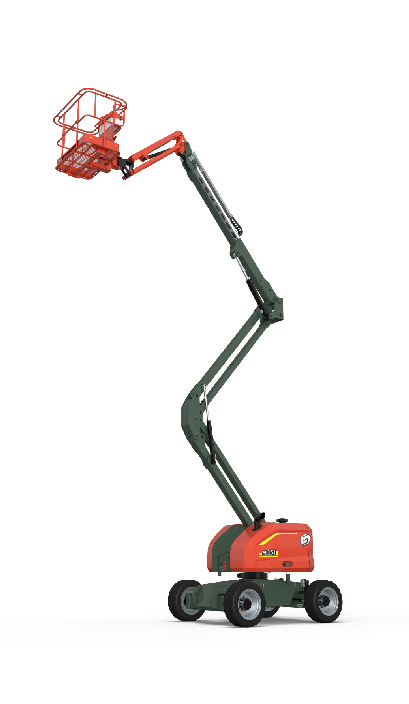

AB15J (AB480J)

Engine Powered Articulated Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Suitable for narrow spaces

    ■ Narrow body of 1.9m(6'3") with almost zero tail sweep

  • Precision performance

    ■ 3 joysticks with variable proportional control, boom swing, boom extension, turntable rotation and
    walking speed, smooth start and stop motion, accuracy in reaching the operation target

  • Industry-Leading adaptability

    ■ Maximum allowable inclination angle up to 5°
Dimensions

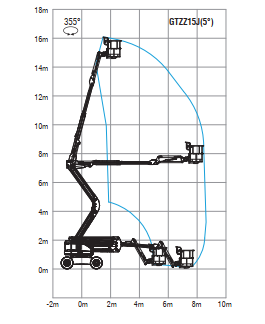

  • Max Platform Height

    14.7m (48'3")

  • Max Working Height

    16.7m (54'9.5")

  • Max Horizontal Extension

    8.5m (27'11")

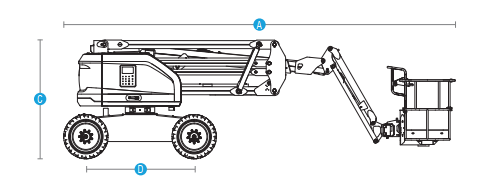

  • [A] Length-Stowed

    7.35m (24'1")

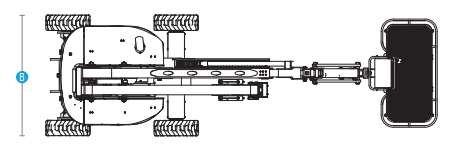

  • [B] Width-Stowed

    2.26m (7'5")

  • [C] Height-Stowed

    2.22m (7'3")

  • [D] Wheelbase

    2.03m (6'8")

  • Ground Clearance

    0.32m (12.6")

  • Platform Dimensions(L×W×H)

    1.83 × 0.85 × 1.1 m (6'×2'9"×3'7")
Performance

  • Platform Capacity
    (Unrestricted/2 Persons)

    250kg (551lbs)

  • Turntable Rotation

    355°/Non-Continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    7km/h 2WD / 5km/h 4WD
    (4.4mph 2WD / 3.1mph 4WD)

  • Drive Speed-Raised

    1.1 km/h (0.7 mph)

  • Gradeability

    30%(2WD)/40%(4WD)

  • Turning Radius-Inside

    1.8m (5'11")

  • Turning Radius-Outside

    4.5m (14'9")

  • Turntable Tailswing

    0 m(0)

  • Tilt Rating

    5°

  • Max Operating Noise Level

    -

  • Drive×Steer

    4 WD x 2 WS

  • Tyres Spec/Type

    315/55D20 (Foam-filled)
Power

  • Power source(optional)

    36.3 kW/2800 rpm/D2011L3I/Deutz/EU Stage 3A/EPA Tier 3
    35.5kW/3000rpm/4TNV88C-DFLT/Yanmar/EU Stage V/EPA Tier 4F

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    70 L (15.4 gal (UK)/18.5 gal (US))

  • Hydraulic Tank Capacity

    90L (19.8 gal (UK) / 23.8 gal (US))


  • Weight

    7,080 kg (15,609 lbs) 2WD / 7,280 kg (16,050 lbs) 4WD

  • Standards Compliance

    CE/AS/CSA/EAC
Download Brochures
Standard features
  • Oscillating function
  • 7-in display screen
  • 4WD × 2WS
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • Weighing system
  • Hydraulic platform leveling
  • AC power to platform
  • Emergency stop system
  • Tilt protection system
  • Max tilt rating to 5°
  • Emergency lowering system
  • Flashing beacon
  • Horn & buzzer
  • Fault diagnosis system
  • Footswitch
  • 1.83m(6') platform with swinging gate
  • Secondary guarding device
  • Foam-filled tires
  • Manual storage box
  • Telematics-ready connector
Optional features
  • Foam-filled non-marking tires
  • Solid tires/Solid non-marking tires
  • 1.45m (4'9") platform
  • Platform work light
  • Half mesh (For platform with swinging gate)
  • Overhead anti-collision device
  • Glazier kit(For platform with swinging gate)
