HOME>PRODUCTS>ARTICULATING BOOM LIFT>AB18J PLUS (AB610J PLUS)

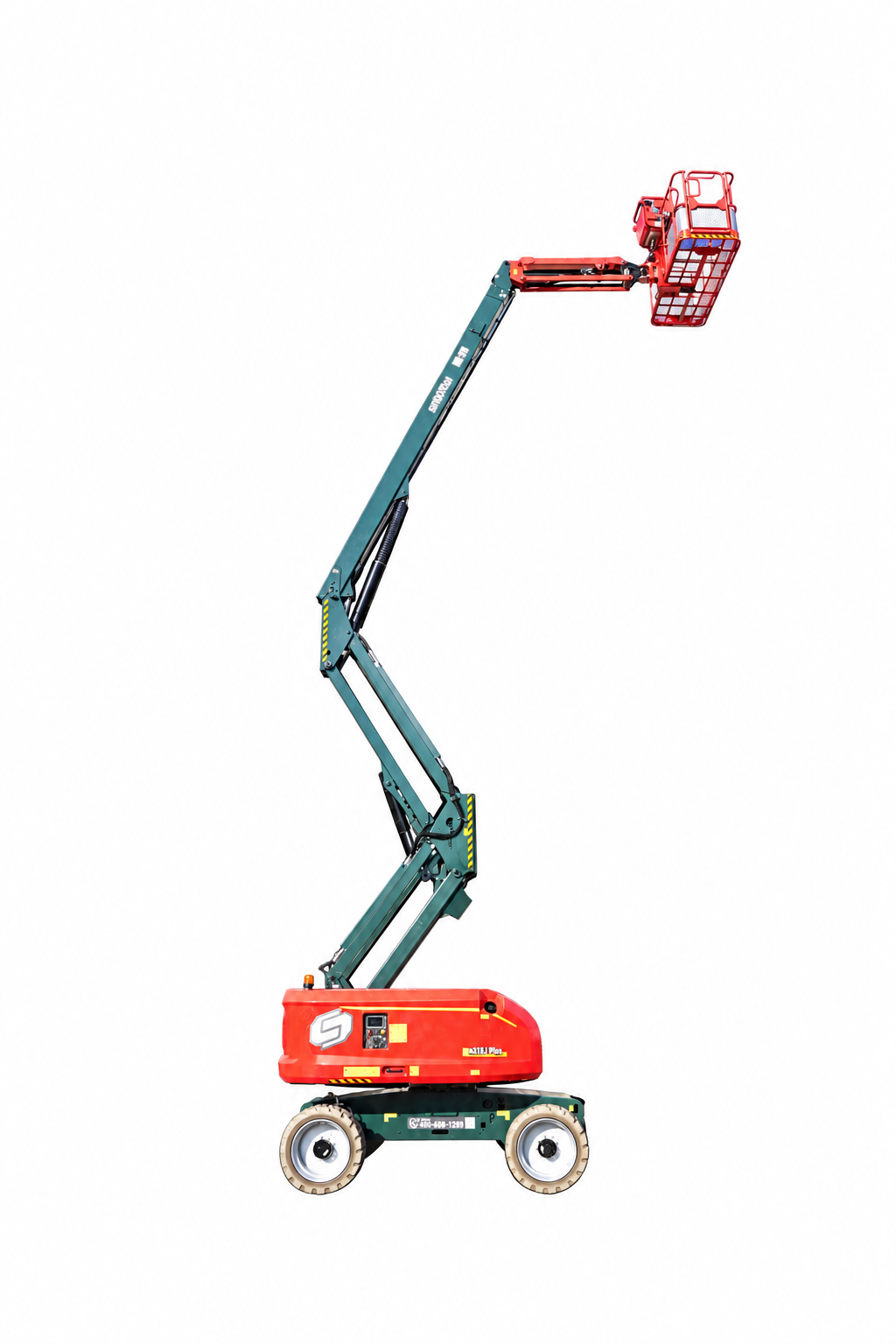

AB18J PLUS (AB610J PLUS)

ENGINE POWERED ARTICULATING BOOM LIFTS
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Platform Height

    18.58 m (60'11")

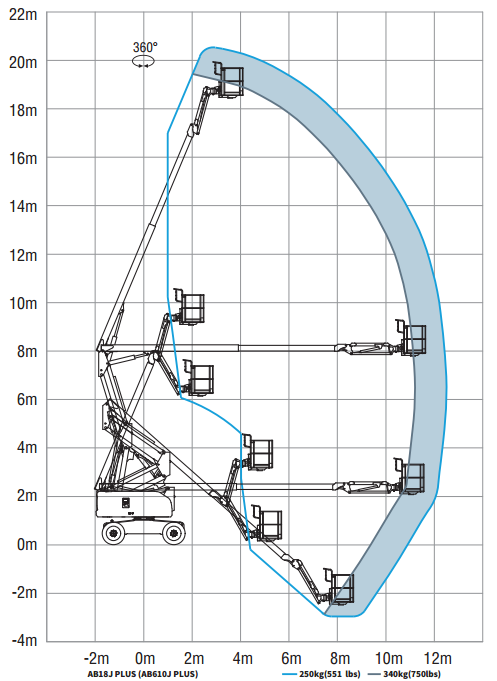

  • Max Working Height

    20.58 m (67'6")

  • Max Horizontal Extension

    12 m/10.7 m (39'4"/35'1") (250 kg/340 kg)

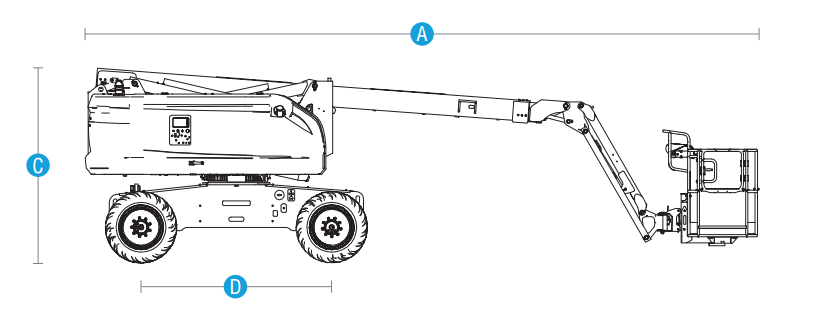

  • [A] Length-Stowed

    8.8 m (28'10")

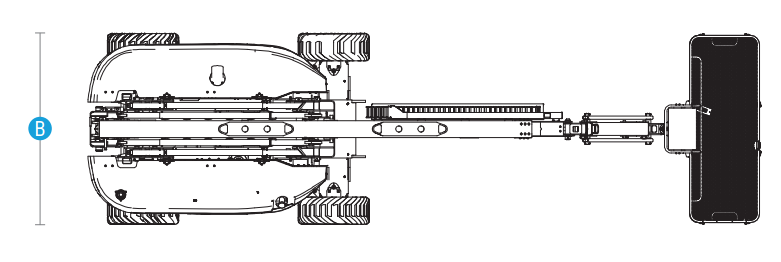

  • [B] Width-Stowed

    2.49 m (8'2")

  • [C] Height-Stowed

    2.54 m (8'4")

  • [D] Wheelbase

    2.49 m (8'2")

  • Ground Clearance

    0.42 m (1'5")

  • Platform Dimensions(L×W×H)

    2.44 m × 0.91 m × 1.1 m (8' × 3' × 3'7")
Performance

  • Platform Capacity
    (Unrestricted/2 Persons)

    340 kg /250 kg (750 lbs/551 lbs) (Restricted /Unrestricted)

  • Turntable Rotation

    360° /Continuous

  • Platform Rotation

    180°

  • Drive Speed-Stowed

    0 ～ 4.8 km/h (0 ～ 3 mph)

  • Drive Speed-Raised

    0 ～ 1.1km/h (0 ～ 0.68 mph)

  • Gradeability

    40%

  • Turning Radius-Inside

    2.4 m / 1.63 m (7'10"/ 5'4")

  • Turning Radius-Outside

    5.55 m / 3.59 m (18'3" / 11'9")

  • Turntable Tailswing

    0.78 m(2'7")

  • Tilt Rating

    5°

  • Max Operating Noise Level

  • Drive×Steer

    4 WD×2 WS (4 WS)

  • Tyres Spec/Type

    355/55D625 (foam-flled) ｜ 36×14-20 (solid)
Power

  • Power source(optional)

    36.4 kW /2200 rpm/D2.9 L4 / Deutz /EU Stage Ⅴ
    36.4 kW /2200 rpm/D2.9 L4 / Deutz / EPA Tier 4F
    36 kW/2500 rpm/F2.8CS449 / Cummins / China T4 43 kW/2500 rpm/QSF2.8T3NA60 / Cummins /China T3、EU Stage 3A (More options on specs sheet)

  • Auxiliary Power Unit

    12 V DC

  • Fuel Tank Capacity-Diesel

    100 L (22.0 gal (UK)/26.4 gal (US))

  • Hydraulic Tank Capacity

    130 L (28.6 gal (UK)/34.3 gal (US))


  • Weight

    9,500 kg (20,944 lbs)/9,620 kg (21,208 lbs) (2WS / 4WS)

  • Standards Compliance

    GB/CE/EAC/AS
Download Brochures
Standard features
  • Full-time oscillation
  • Four-wheel brake
  • 7-in smart screen
  • Continuous turntable rotation in 360°
  • Automotive sleeves for all pipes
  • Fault diagnosis system
  • Hydraulic leveling for platform
  • Platform rotation function
  • Weighing system
  • Tilt protection system
  • Max allowable tilt angle at 5°
  • Rear position and travel confirmation
  • Rotating warning light for safety warning
  • Buzzer
  • Voice broadcast
  • Emergency stop system
  • Emergency lowering system
  • Mechanical release for travel braking
  • Proportional control with 3 joysticks
  • Anti-pinch device
Optional features
  • AC power device on platform
  • Solid tire
  • Non-marking tire
  • Platform with inward swinging gate (2.44 × 0.91 × 1.1 m)
  • Four-wheel steering
  • Hydraulic generator
  • Working light on the platform
  • Overhead anti-collision device
  • T-BOX(GPS)
  • Glazier kit bracket (for platform with inward swinging gate)
  • Tool box (for platform with inward swinging gate)
  • Manual storage box
  • Half-height guardrail (for platform with inward swinging gate)
