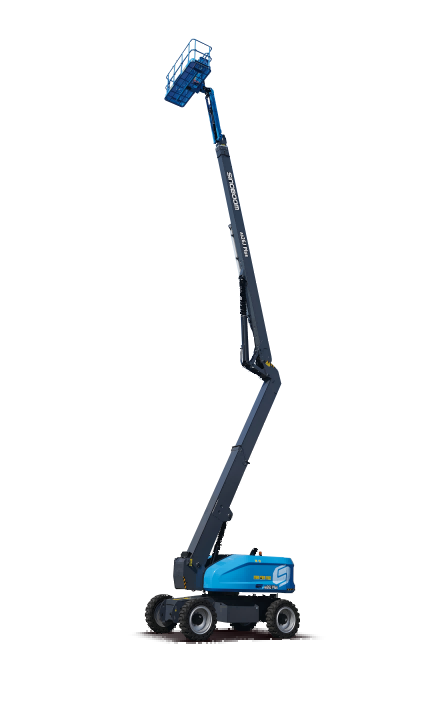

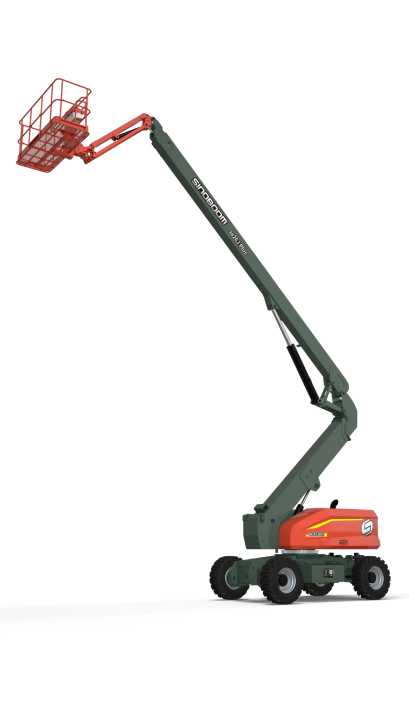

AB26J PLUS (AB850J PLUS)

ENGINE POWERED ARTICULATING BOOM LIFTS
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

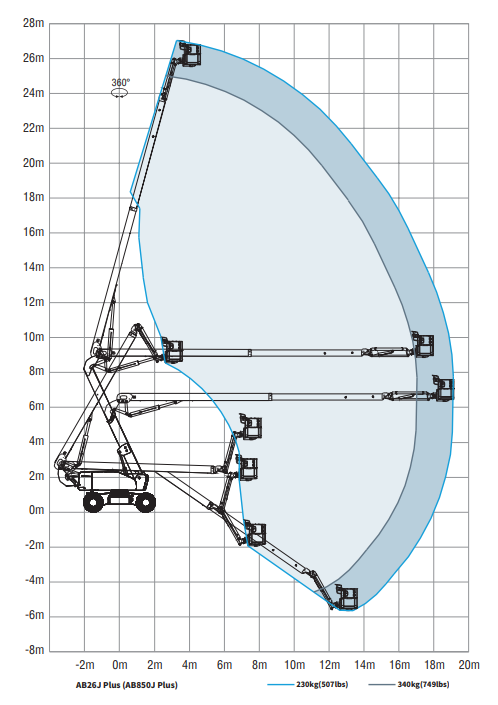

  • Max Platform Height

    25.65 m (84'2")

  • Max Working Height

    27.65 m (90'9")

  • Max Horizontal Extension

    19.1 m /17.0 m (62'8"/55'9") (230kg/340kg)

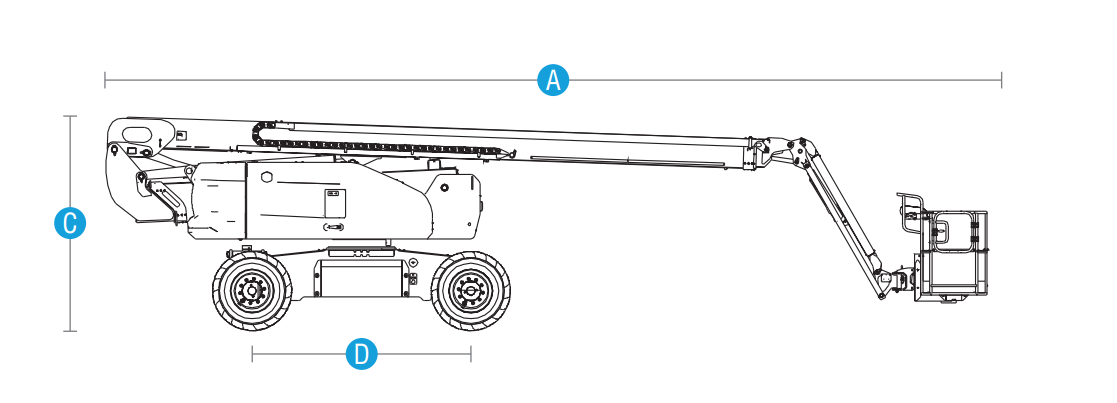

  • [A] Length-Stowed

    12.09 m (39'8")

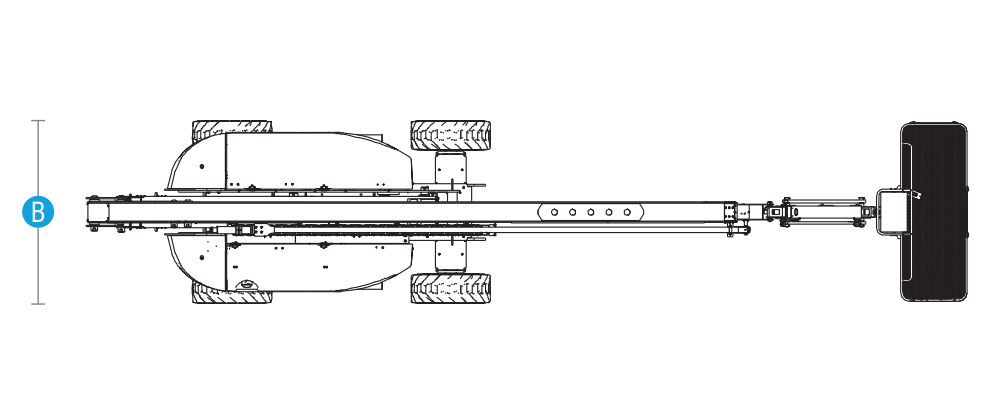

  • [B] Width-Stowed

    2.49 m (8'2")

  • [C] Height-Stowed

    2.93 m (9'7")

  • [D] Wheelbase

    3.0 m (9'10")

  • Ground Clearance

    0.46 m (1'6")

  • Platform Dimensions(L×W×H)

    2.44 m x 0.91 m x 1.1 m (8' x 3' x 3'7")
Performance

  • Platform Capacity
    (Unrestricted/2 Persons)

    230 kg/340 kg (507 lbs/749 lbs)(Unrestricted/Restricted)

  • Turntable Rotation

    360°/Continuous

  • Platform Rotation

    180°

  • Drive Speed-Stowed

    0～4.8 km/h (0～3.0 mph)

  • Drive Speed-Raised

    0～1.1 km/h (0～0.7 mph)

  • Gradeability

    45%

  • Turning Radius-Inside

    3.65 m (11'12")(Two-wheel steering)
    2.25 m (7'5")(Four-wheel steering)

  • Turning Radius-Outside

    6.91 m ( 22'8")(Two-wheel steering)
    4.60 m (15'1")(Four-wheel steering)

  • Turntable Tailswing

    1.13 m (3'8”)

  • Tilt Rating

    5°

  • Max Operating Noise Level

    -

  • Drive×Steer

    4WD×4WS (2WS optional)

  • Tyres Spec/Type

    385/65-22.5 /foam-filled
Power

  • Power source(optional)

    43 kW/2500 rpm/QSF2.8T3NA60 / Cummins /China T3/EU Stage 3A
    36.5 kW/2200 rpm/YCF3050 / Yuchai /China T3

  • Auxiliary Power Unit

    12 V DC

  • Fuel Tank Capacity-Diesel

    150 L (33.0 gal(UK)/39.6 gal(US))

  • Hydraulic Tank Capacity

    180 L (39.6 gal(UK)/47.6 gal(US))


  • Weight

    18,640kg (41,094 lbs)(Two-wheel steering)
    18,760kg (41,358 lbs)(Four-wheel steering)

  • Standards Compliance

    CE/EAC
Download Brochures
Standard features
  • Hydraulic platform leveling
  • 180°platform rotation
  • Active oscillating function
  • Automotive sleeves for all pipes
  • Four-wheel brake
  • Max allowable tilt angle at 5°
  • Flashing beacon
  • Weighing system
  • 4WD x 4WS
  • Tilt protection system
  • Emergency lowering system
  • Fault diagnosis system
  • Emergency stop system
  • Horn and buzzer
  • Motion alarm
  • Mechanical release for travel braking
  • 7-in smart screen
  • Rear position and travel confirmation
  • Manual storage box
  • Foot switch
  • 360° continuous turntable rotation
  • Foam-filled tires
  • 2.44m side entry swing gate
  • Proportional control with 3 joysticks
  • Telematics-ready connector
  • Secondary guarding device
  • Tool box
  • Drive into container for transport
Optional features
  • AC power socket on platform
  • Solid tires
  • Non-marking Foam filled tires
  • Half-mesh
  • Glazier kit
  • Hydraulic generator
  • Platform work light
  • Overhead anti-collision device
  • Anti-finger pinch device
  • Oil cooler
  • AC power to platform
