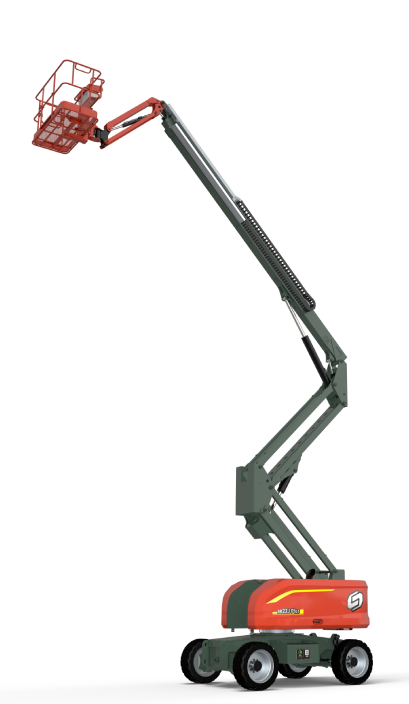

AB22J Plus (AB710J Plus)

ENGINE POWERED ARTICULATING BOOM LIFTS
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Platform Height

    21.6 m (70'10”)

  • Max Working Height

    23.6 m (77'5”)

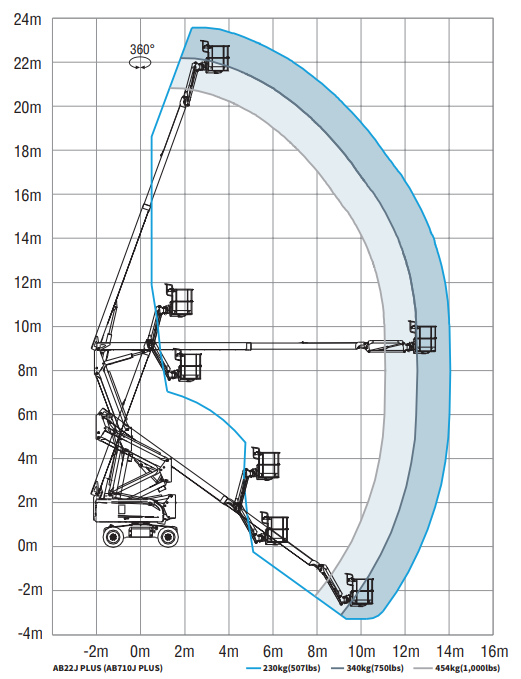

  • Max Horizontal Extension

    13.35 m/11.85 m/10.4 m (43'10"/38'11"/34'2")
    (230 kg/340 kg/454 kg)

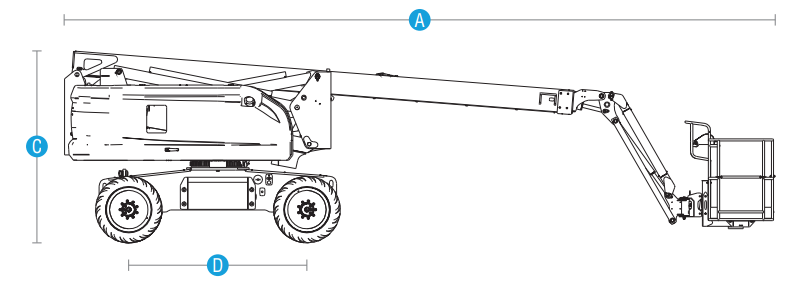

  • [A] Length-Stowed

    9.95 m (32'8")

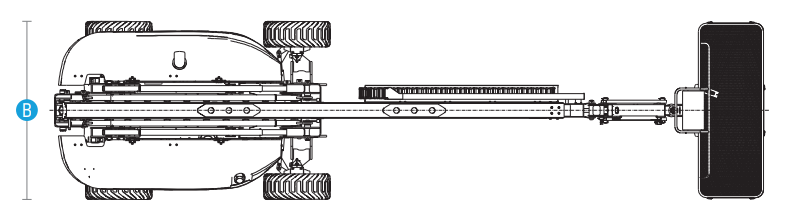

  • [B] Width-Stowed

    2.49 m (8'2")

  • [C] Height-Stowed

    2.68 m (8'10")

  • [D] Wheelbase

    2.49 m (8'2")

  • Ground Clearance

    0.42 m (1'4")

  • Platform Dimensions(L×W×H)

    2.44 m × 0.91 m × 1.1 m (8' × 3' × 3'7")
Performance

  • Platform Capacity
    (Unrestricted/2 Persons)

    454 kg/340 kg /230 kg (1,000 lbs/750 lbs/507 lbs)
    (Restricted/ Restricted /Unrestricted)

  • Turntable Rotation

    360°/Continuous

  • Platform Rotation

    180°

  • Drive Speed-Stowed

    0～4.8 km/h (0～3 mph)

  • Drive Speed-Raised

    0～1.1km/h (0～0.68 mph)

  • Gradeability

    40%

  • Turning Radius-Inside

    2.4 m (7’10”) / 1.63 m (5’4”)
    (Two-wheel steering / Four-wheel steering)

  • Turning Radius-Outside

    5.55 m (18’3”) / 3.59 m (11’9”)
    (Two-wheel steering / Four-wheel steering)

  • Turntable Tailswing

    0.89 m(2’11”)

  • Tilt Rating

    5°

  • Max Operating Noise Level

    -

  • Drive×Steer

    4WDx2WS (4WS)

  • Tyres Spec/Type

    355/55D625 (foam-filled)
    36×14-20 (solid)
Power

  • Power source(optional)

    36.4 kW /2200 rpm/D2.9 L4 / Deutz /EU Stage Ⅴ/EPA Tier 4F |36 kW/2200 rpm/ F2.8CS449 / Cummins / China T4 |43 kW/2500 rpm/QSF2.8T3NA60 / Cummins / China T3、EU Stage 3A (More options in specification sheet)

  • Auxiliary Power Unit

    12 V DC

  • Fuel Tank Capacity-Diesel

    100 L (22.0 gal (UK)/26.4 gal (US))

  • Hydraulic Tank Capacity

    130 L (28.6 gal (UK)/34.3 gal (US))


  • Weight

    11,880 kg/12,000 kg (26,190 lbs/26,455 lbs)
    (Two/Four-wheel steering)

  • Standards Compliance

    CE/EAC/AS
Download Brochures
Standard features
  • Active oscillating function
  • Four-wheel brake
  • 7-in smart screen
  • Continuous turntable rotation in 360°
  • Automotive sleeves for all pipes
  • Fault diagnosis system
  • Hydraulic leveling for platform
  • Platform rotation function
  • Weighing system
  • Tilt protection system
  • Max allowable tilt angle at 5°
  • Rear position and travel confirmation
  • Rotating warning light for safety warning
  • Horn and buzzer for safety warning
  • Voice broadcast
  • Emergency stop system
  • Emergency lowering system
  • Mechanical release for travel braking
  • Proportional control with 3 joysticks
  • Platform with inward swinging gate (2.44×0.91×1.1 m)
  • Four-wheel steering
  • Anti-pinch device
  • Manual storage box
  • Tool box(for platform with inward swinging gate)
  • AC power line to the platform
Optional features
  • Telematics-ready connector
  • Solid tire
  • Non-marking tire
  • Working light on the platform
  • Anti-collision device
  • Hydraulic generator
  • Glass bracket(for platform with inward swinging gate)
  • Half-height guardrail (for platform with inward swinging gate)
