HOME>PRODUCTS>ARTICULATING BOOM LIFT>AB15J PLUS (AB480J PLUS)

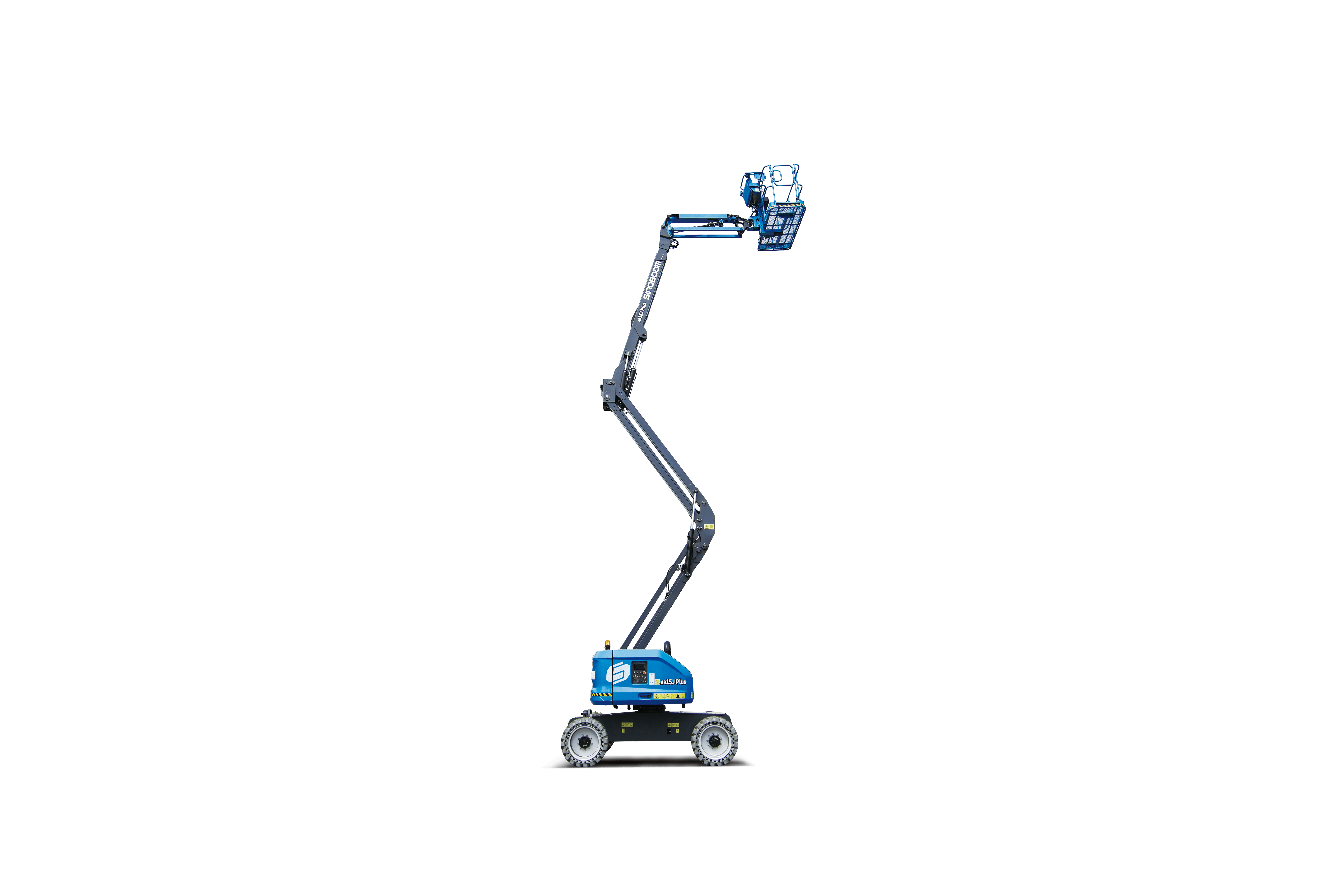

AB15J PLUS (AB480J PLUS)

Engine Powered Articulating Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Platform Height

    14.7 m (48'3")

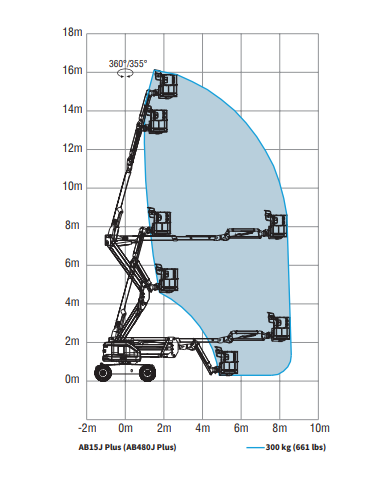

  • Max Working Height

    16.7 m (54'9")

  • Max Horizontal Extension

    8.5 m (27'11")

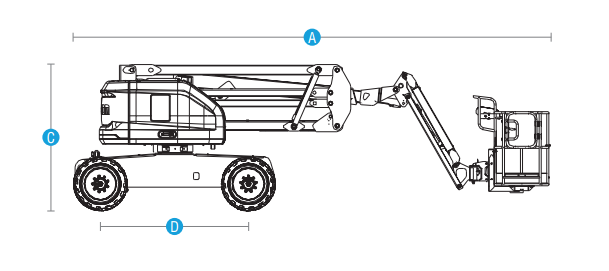

  • [A] Length-Stowed

    7.49 m (24'7")

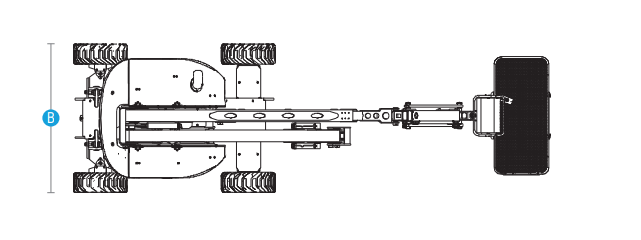

  • [B] Width-Stowed

    2.3 m (7'7")

  • [C] Height-Stowed

    2.28 m (7'6")

  • [D] Wheelbase

    2.3 m (7'7")

  • Ground Clearance

    0.37 m (1'3")

  • Platform Dimensions(L×W×H)

    1.83 m x 0.85 m x 1.1 m (6' x 2'9" x 3'7")
Performance

  • Platform Capacity
    (Unrestricted/2 Persons)

    300 kg (661 lbs)

  • Turntable Rotation

    360° /Continuous 355° /Non-continuous (Optional）

  • Platform Rotation

    180°

  • Drive Speed-Stowed

    4.5 km/h (2.8 mph)

  • Drive Speed-Raised

    1.0 km/h (0.6 mph)

  • Gradeability

    40%

  • Turning Radius-Inside

    1.82 m (6')

  • Turning Radius-Outside

    4.78 m ( 15'8")

  • Turntable Tailswing

    0.1 m(4")

  • Tilt Rating

    5°

  • Max Operating Noise Level

    -

  • Drive×Steer

    4WD x 2WS

  • Tyres Spec/Type

    33×12D610 /foam-filled
    33×12-20 /solid
Power

  • Power source(optional)

    18.2 kW/3000 rpm/ D1105-EF02_CN4 /Kubota//EU stage V、EPA Tier 4F
    43.2 kW/2400 rpm/ V2403-CR-TIE4B-SBM-2/Kubota// EPA Tier 4
    36 kW/2600 rpm/ V2403BM-DI-CT04/Kubota// China IV

  • Auxiliary Power Unit

    12 V DC

  • Fuel Tank Capacity-Diesel

    55 L (12.1 gal (UK)/14.5 gal (US))

  • Hydraulic Tank Capacity

    112 L (24.6 gal (UK)/29.6 gal (US))


  • Weight

    7,700kg (16,976 lbs) (Engine power＝18.2kw)
    8,070kg (17,791 lbs) (Engine power≥36kw)

  • Standards Compliance

    CE/ANSI/CSA/AS/EAC
Download Brochures
Standard features
  • Active oscillating function
  • Four-wheel brake
  • Four-wheel drive/Two-wheel steer
  • Continuous turntable rotation in 360°
  • 7-in smart screen
  • Fault diagnosis system
  • Hydraulic leveling for platform
  • Platform rotation function
  • Weighing system
  • Tilt protection system
  • Max allowable tilt angle at 5°
  • Rear position and travel confirmation
  • Rotating warning light for safety warning
  • Horn and buzzer for safety warning
  • Mechanical release for travel braking
  • Emergency stop system
  • Emergency lowering system
  • Rotatable engine
  • Proportional control with 3 joysticks
  • Automotive sleeves for all pipes
  • Engine preheating
  • Anti-restart protection for engine
  • Automatic engine shutdown in case of Malfunction
  • Platform with inward swinging gate(1.83 x 0.85 x 1.1 m)
  • Divider/combiner anti-slip system
  • Anti-pinch hand device
  • Tool box (for platform with inward swinging gate)
  • Manual storage box
  • Telematics-ready connector
Optional features
  • AC power line to the platform
  • Solid tire
  • Non-marking tire
  • Anti-collision device
  • Platform (1.45 x 0.85 x 1.1 m)
  • Working light on the platform
  • Half-height guardrail (for platform with inward swinging gate)
  • Cold-weather heating package(Engine power≥36kw)
  • 9kW Hydraulic generator (Only Kubota V2403BM-DICT04 configuration is available)
  • White noise
  • Oil cooler(Engine power≥36kw)
